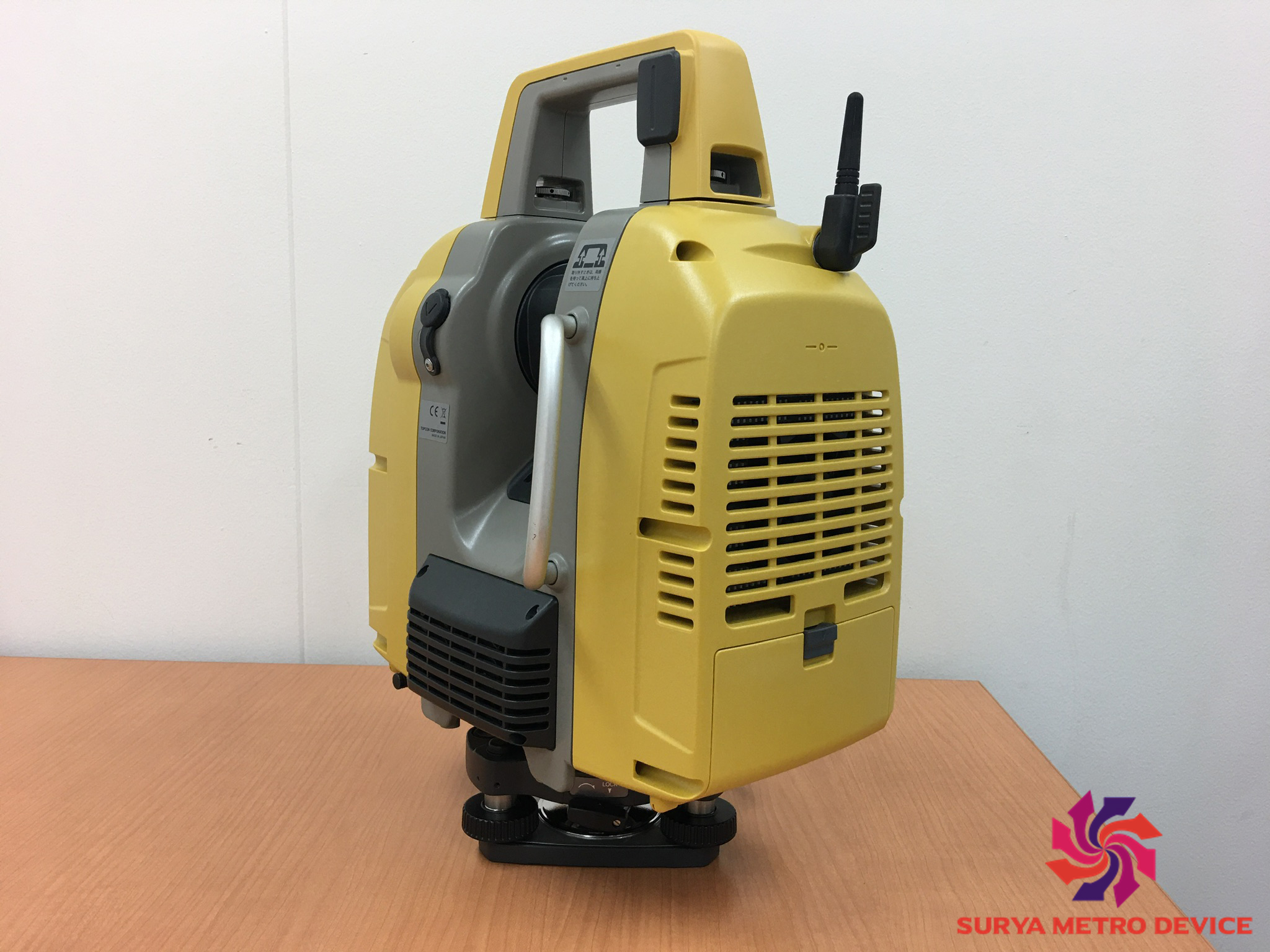

Topcon GLS-2000S 3D Laser Scanner

GLS-2000 Features Include:

– High Accuracy with Precise Scan Technology.
– High Speed 360º Dome Scanning.
– Long Range.
– Dual Camera.
– Eye Safe, Selectable Laser Technology.
– Compact, Lightweight, Rugged Design.

Specifications

Maximum Range (System Performance)

– Standard Mode: Standard Mode
– High Speed Mode: 210m at 90%
– Low Power Mode: 210m at 90%

Single Point Accuracy (System Performance)

– Distance: 3.5mm (1-150m), 1sigma
– Angle: 6”

Dual Axis Compensator (System Performance)

– Resolution: 1”
– Accuracy: 4”
– Range: -/+ 6’

Target Deflection Accuracy (System Performance)

– Target Deflection Accuracy: 3” at 50m

Scanning Control

– Control System: On-board

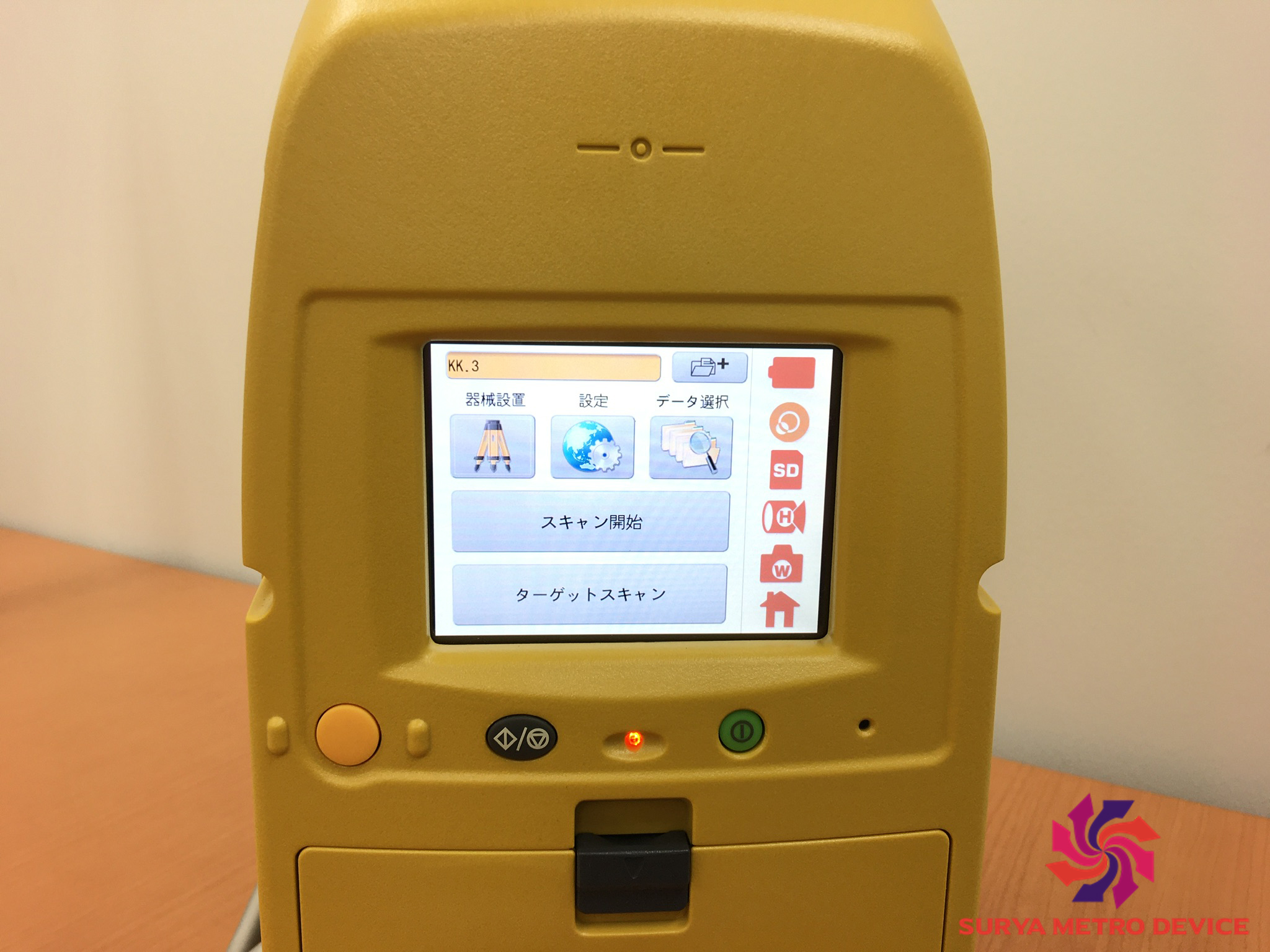

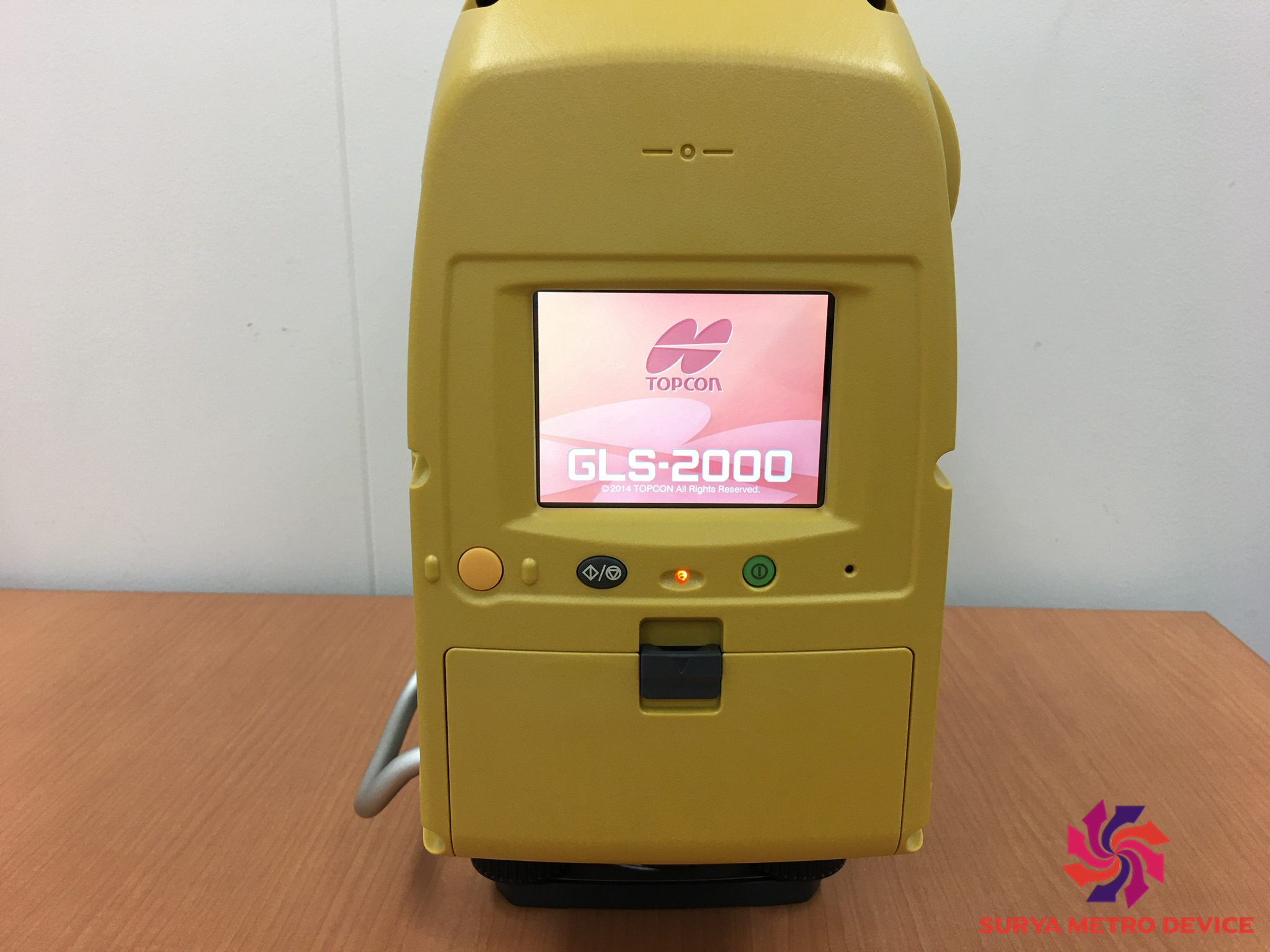

– Display: VGA Color Touch Display
– Keyboard: 3 Key
– Data Storage: SD Card

Environmental

– Operation Temperture: -5ºC to 45ºC
– Storage Temperture: -20ºC to 60ºC
– Dust/Humidity: IP54

Physical

– Dimensions: 152 x 293 x 412mm
– Weight: 11kg
– Keyboard: 21 keys

Package includes:

– GLS-2000 Instrument
– Carry Case
– 4x Batteries and 2x Chargers
– Tribrach
– Cleaning Kit and Lens Cover
– Tooling Kit
– SDHC Memory Card
– ScanMaster Software
