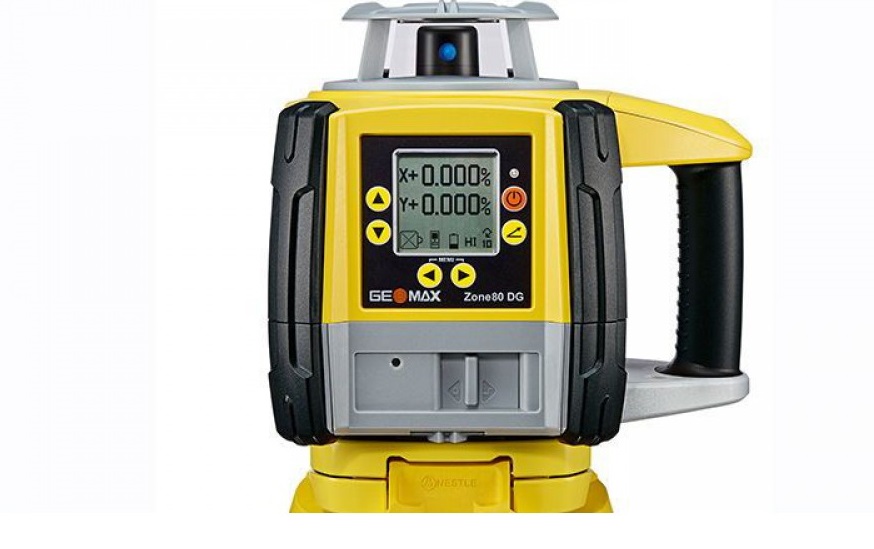

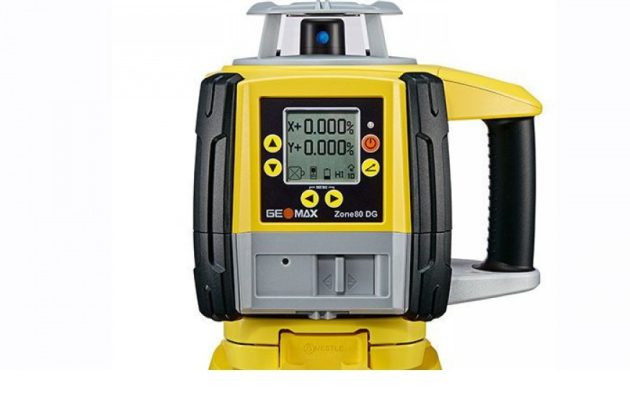

Geomax Zone80 DG Fully-Automatic Dual Grade Laser
The Zone80 DG is the rotating laser of choice when it comes to land levelling tasks – not only in construction but also agriculture. It is key for long distance applications as well as machine guidance, as it runs on different head speeds, including 20rps (rotation per second). Zone80 DG provides this rotation speed allowing a faultless read out of values by the receiver that is mounted on the machine. The best thing – the laser rotator offers all those features at an affordable cost.
Beam catch and lock

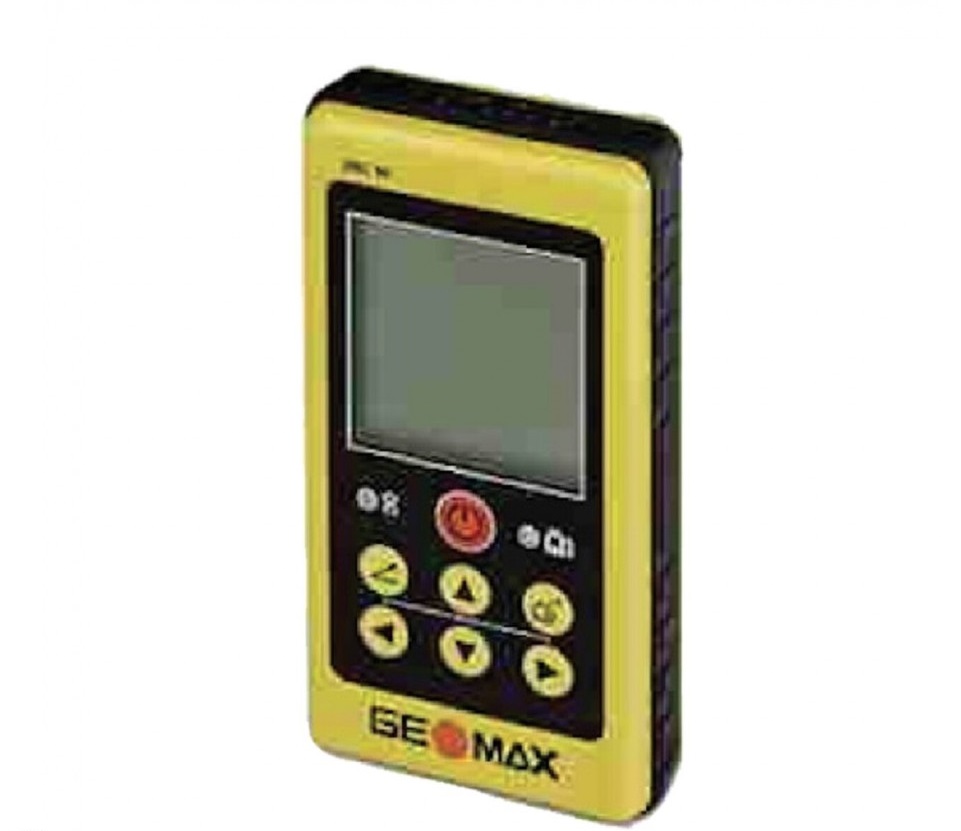

Using the ZRD105B receiver the laser beam can be tilted to the desired slope thanks to its beam catch functionality. With the beam lock feature your laser is monitored and will alarm you as soon as it has been moved.
Fully automatic in both axis
The Zoom80 DG is fully automatic and enables you to complete your grading tasks easily and accurately. For optimal land use, Zone80 DG provides references for the horizontal planes as well for slopes in both axis up to 15 %.
Technical Specification:
| Operating range (diameter) | 1100m/3000ft |
| Self-levelling accuracy | +/-1.5mm at 30m (+/-1/16″ at 100ft) |
| Self-levelling range | +/- 5 deg |
| Grade range | up to 15% |
| Rotation speed | 300, 600, 1200 rpm |
| Laser diode type/class | 635 nm (visible)/class 2 |
| Batteries type | Li-Ion |
| Battery life | >50hr |
| Operating temperature | -20degC to 50degC |
| Storage temperature | -40degC to 70degC |
| Protection | IP67 |
