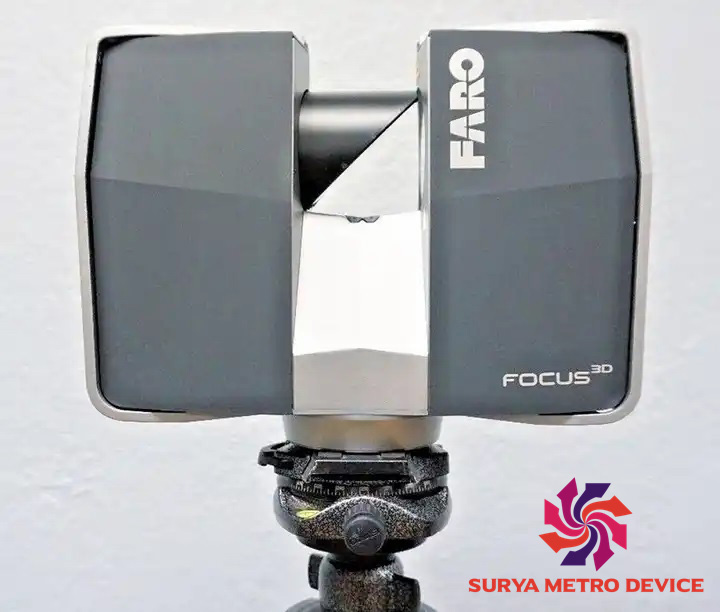

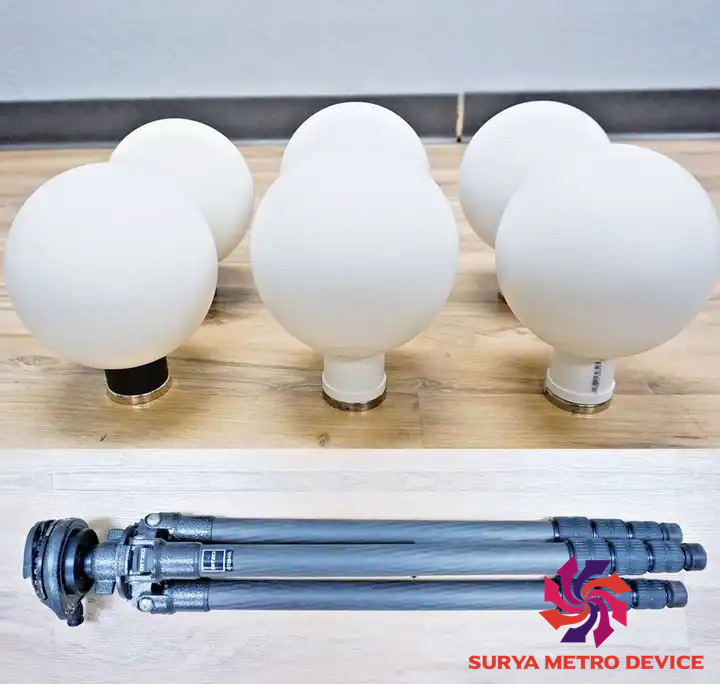

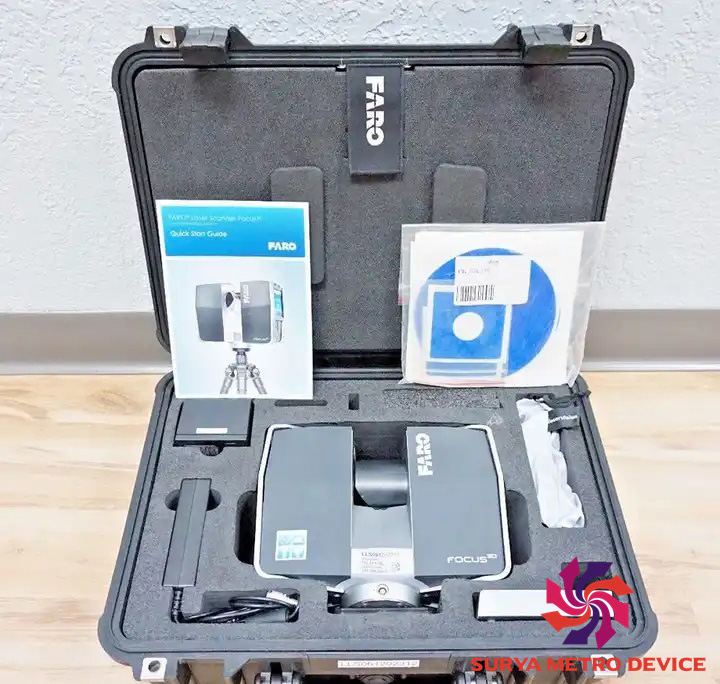

FARO Focus 3D S120 Laser Scanner

*year of manufacture: 2013

The Focus3D is a high-speed 3D laser scanner for detailed measurement and documentation. With a touch operated screen to control scanning functions and parameters, the Focus3D uses laser technology to produce incredibly detailed threedimensional images of complex environments and large scale geometries in only a few minutes. The resulting image is an assembly of millions of 3D measurement points that provide an exact digital reproduction of existing conditions.

The Focus3D offers the most effcient method for three-dimensional documentation of building construction, excavation volumes, façade and structural deformations, crime scenes, accident details, product geometry, factories, process plants and more. Given its minimal size and weight as well as touch interface, the Focus3D is easy to work with and saves up to 50% of scan time compared to conventional scanners.

FARO Focus 3D S120 Features:

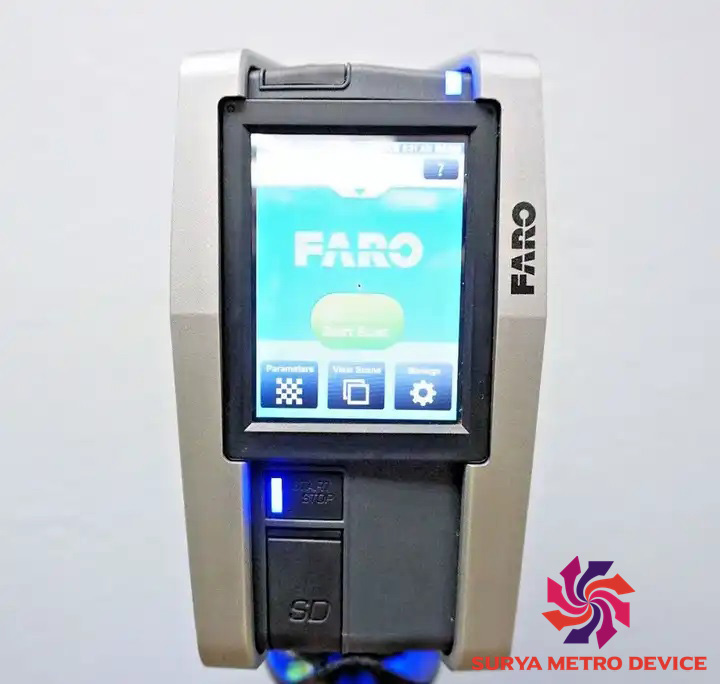

• Intuitive touchscreen display: Control all scanner functions with a touch interface for unparalleled ease of use and control
• Small and compact: With a size of only 9.5 x 8 x 4in and a weight of just 11lbs, the Focus3D is the smallest 3D scanner ever built
• Integrated color camera: Photorealistic 3D color scans due to an integrated color camera featuring an automatic 70 megapixels parallax-free color overlay
• High-performance battery: Integrated lithium-ion battery provides up to fve hours of battery life and can be charged during operation
• Data management: All data is stored on a SD card enabling easy and secure transfer to a PC. Using SCENE WebShare, images can be shared on the internet
• Compass: An electronic compass is now included within the unit to associate directional data to your scans and facilitate the auto-registration process
• Height Sensor (Altimeter): Each scan now includes height information which can be used to scan different foor levels in a building. The data can then be used to differentiate the ?oors
• Dual Axis Compensator: To minimize the number of targets needed, the dual axis compensator enables every scan to have integrated level information
• WLAN (WiFi): WLAN remote control permits you to start, stop, view or download scans at a distance

FARO Focus 3D 120 Perfomance Spesification

Ranging Unit

• Unambiguity interval: 153.49m (503.58ft)
• Range Focus3D 1201: 0.6m – 120m indoor or outdoor with low ambient light and normal incidence to a 90% re?ective surface
• Range Focus3D 20: 0.6m – 20m at normal incidence on >10% matte re?ective surface*
• Measurement speed: 122,000 / 244,000 / 488,000 / 976,000 points/sec
• Ranging error2: ±2mm

Color Unit

• Resolution: Up to 70 megapixel color
• Dynamic color feature: Automatic adaption of brightness

Detection unit

• Vertical feld of view (vertical/horizontal): 305° / 360°
• Step size (vertical/horizontal): 0.009° (40,960 3D pixels on 360°) / 0.009° (40,960 3D pixels on 360°)
• Max. vertical scan speed: 5,820rpm or 97Hz

Laser (Optical transmitter)

• Laser power (cw Ø): 20mW (Laser class 3R)
• Wavelength: 905nm
• Beam divergence: Typical 0.19mrad (0.011°)
• Beam diameter at exit: 3.0mm, circular

Data handling and control

• Data storage: SD, SDHC™, SDXC™; 32GB card included
• Scanner control: Via touch-screen display
• New WiFi(WLAN) access: Remote control, Scan Visualization and download are possible on mobile devices with Flash®

Multi-Sensor

• Dual axis compensator: Levels each scan with an accuracy of 0.015° and a range of ±5°
• Height sensor: Detects the height relative to a fxed point via an electronic barometer and adds it to the scan
• Compass: Electronic compass gives the scan an orientation. A calibration feature is included

Hardware Spesification

• Power supply voltage: 19V (external supply), 14.4V (internal battery) Cable connector: Located in scanner mount
• Power consumption: 40W and 80W respectively (while battery charges) Weight: 5.0kg
• Battery life: Up to 5 hours Size: 240x200x100mm3
• Ambient temperature: 5° – 40°C Maintenance calibration: Annual
• Humidity: Non-condensing Parallax-free: Yes
