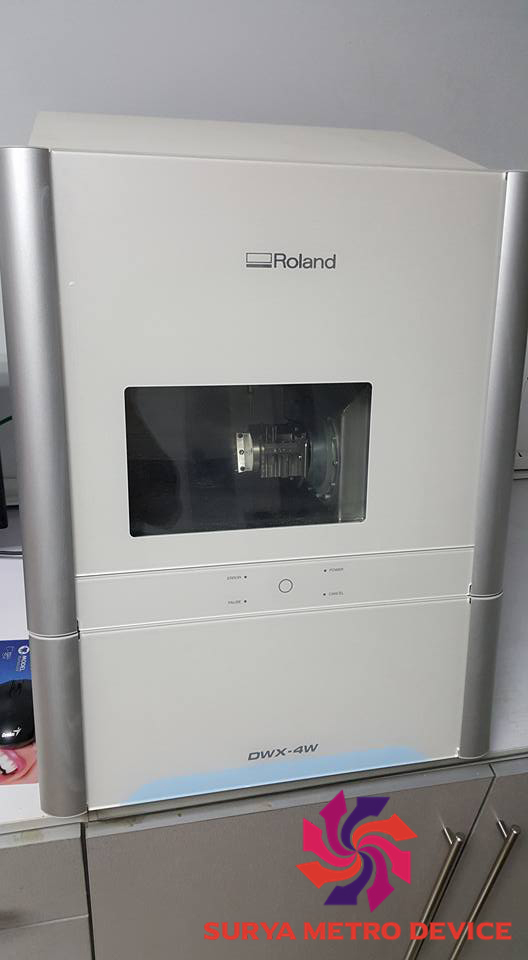

Roland DWX-4W Wet Dental Milling Unit

DWX-4W Wet Dental Mill The DWX-4W represents the latest in DWX technology, going beyond dry milling to quickly and easily wet mill popular glass ceramics and composite resin with the precision and reliability Roland DG products are known for. Compact and easy-to-use, it provides unattended wet milling of crowns, bridges, inlays, onlays and veneers.

Multi-Axes Milling 4-axis simultaneous grinding enables the DWX-4W to accomplish difficult undercuts and produce highly detailed anatomy. The rigid ball screw-driven 4-axis control allows for smooth, high-precision machining. With its multipin clamp, it can mill up to three different pin-type materials continuously, enabling production of three different patient prosthetics in a single production run. It also features an Automatic Tool Changer (ATC) that autochanges grinding burs without interrupting the production process.

Economical Open Architecture Open architecture allows the DWX-4W to work with the latest materials and CAD/CAM software so you’re never limited by older technology. If you already have a production solution, it works seamlessly with your existing scanner and compatible CAD/CAM software while eliminating the need to rely on a single source for materials.

CAM Software Partners:

Peace-of-Mind, Reliablity and Support The DWX-4W offers unmatched reliability and post-sales support that includes Roland Care Premium with a two-year warranty. Roland also provide online video, educational support and certified service engineers to keep your machine running smoothly.

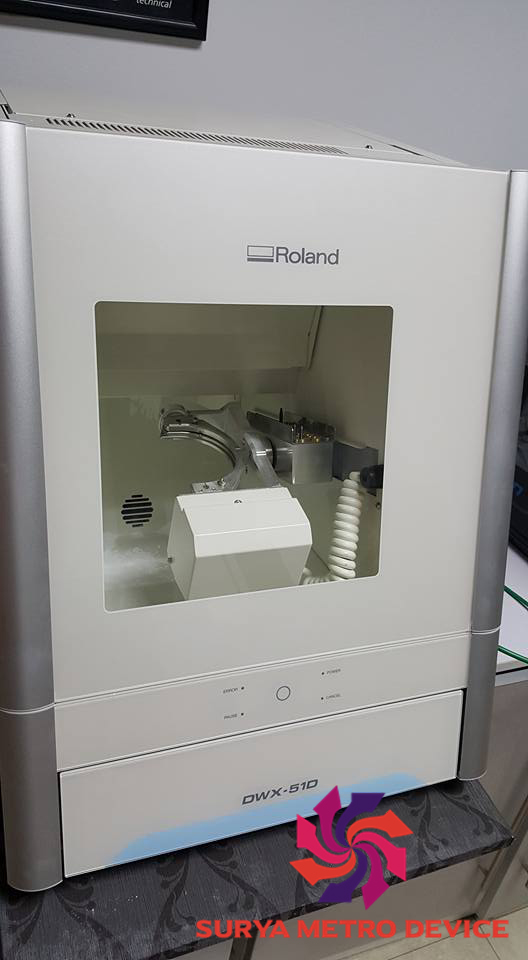

Combine DWX Devices for a Complete Dental Solution Pair the DWX-51D and DWX-4W for the most flexible and productive dry and wet milling solution. Using both dry and wet DWX devices gives you the technology and confidence to take on the maximum amount of glass ceramics and zirconia restorations. In contrast to dry and wet combo devices, a dedicated DWX dry and wet solution eliminates the switch backand-forth through processes and the hours of cleaning in-between jobs.

User-Friendly Operation Even novice users can quickly set up the DWX-4W and begin creating restorations the same day the machine arrives. Features to enhance user experience include:

• Simple one-button design
• Colour-coded LED status lights signal current job progress.
• Fully integrated pump and coolant system with water filtration for maintaining a clean and efficient workspace.
• The Virtual Machine Panel (VPanel) allows users to configure settings from their computer, send CAM data to the DWX-4W for production, and track milling progress.
• Connect up to four DWX devices to one computer.
• WATER COLLECTION FILTRATION SYSTEM

In addition to MillBox Roland Edition by CIMsystem, open architecture software partners include the following:

CAM Software Included

Purchase of the DWX-4W includes MillBox Roland Edition by CIMsystem. This openarchitecture CAM software accepts all STL file types and supports the milling of relevant materials and features a user-friendly interface and simple workflow that promotes a short learning curve. Its features include automatic nesting and placement options to help maximize efficiency and pre-defined milling procedures for direct software-to-mill functionality without interruption during tool path calculation milling procedures for direct software-to-mill functionality without interruption during tool path calculation.

High-Performance Jaeger DentaDrive Spindle The DWX-4W’s high-performance 60,000 RPM Jaeger DentaDrive spindle supports precision milling. It’s equipped to mill pin-type blocks, including glass ceramics and composite resin – acclaimed in the industry for their superior strength and aesthetics. Materials can be finished with a short finishing time, dramatically reducing labour and production time.

DWX-4W Wet Dental Mill

The DWX-4W represents the latest in DWX technology, going beyond dry milling to quickly and easily wet mill popular glass ceramics and composite resin with the precision and reliability Roland DG products are known for. Compact and easy-to-use, it provides unattended wet milling of crowns, bridges, inlays, onlays and veneers.

Multi-Axes Milling 4-axis simultaneous grinding enables the DWX-4W to accomplish difficult undercuts and produce highly detailed anatomy. The rigid ball screw-driven 4-axis control allows for smooth, high-precision machining. With its multipin clamp, it can mill up to three different pin-type materials continuously, enabling production of three different patient prosthetics in a single production run. It also features an Automatic Tool Changer (ATC) that autochanges grinding burs without interrupting the production process.

Complete your dental restoration solution with the DWX-4W Wet Dental Mill.

• Simultaneous 4-axis milling of glass ceramics and composite resin.
• High-performance Jaeger DentaDrive spindle.
• Multi pin-clamp to mill up to three different pin-type materials continuously.
• 4-station Automatic Tool Changer switches burs for a more continuous operation and detailed anatomy.
• Coloured LED machine status light.
• Easy VPanel operation to track too life and machine calibration.
• Connect up to four DWX devices to one computer.
• Fully integrated pump and coolant system.
• Automatic machine calibration.
• Pair the DWX-51D and DWX-4W for the most flexible and productive dry and wet solution.
• Roland Care Premium warranty included.
