Name: Niton XL5 XRF Alloy Metal Analyzer
SKU: 6787
Availability: InStock

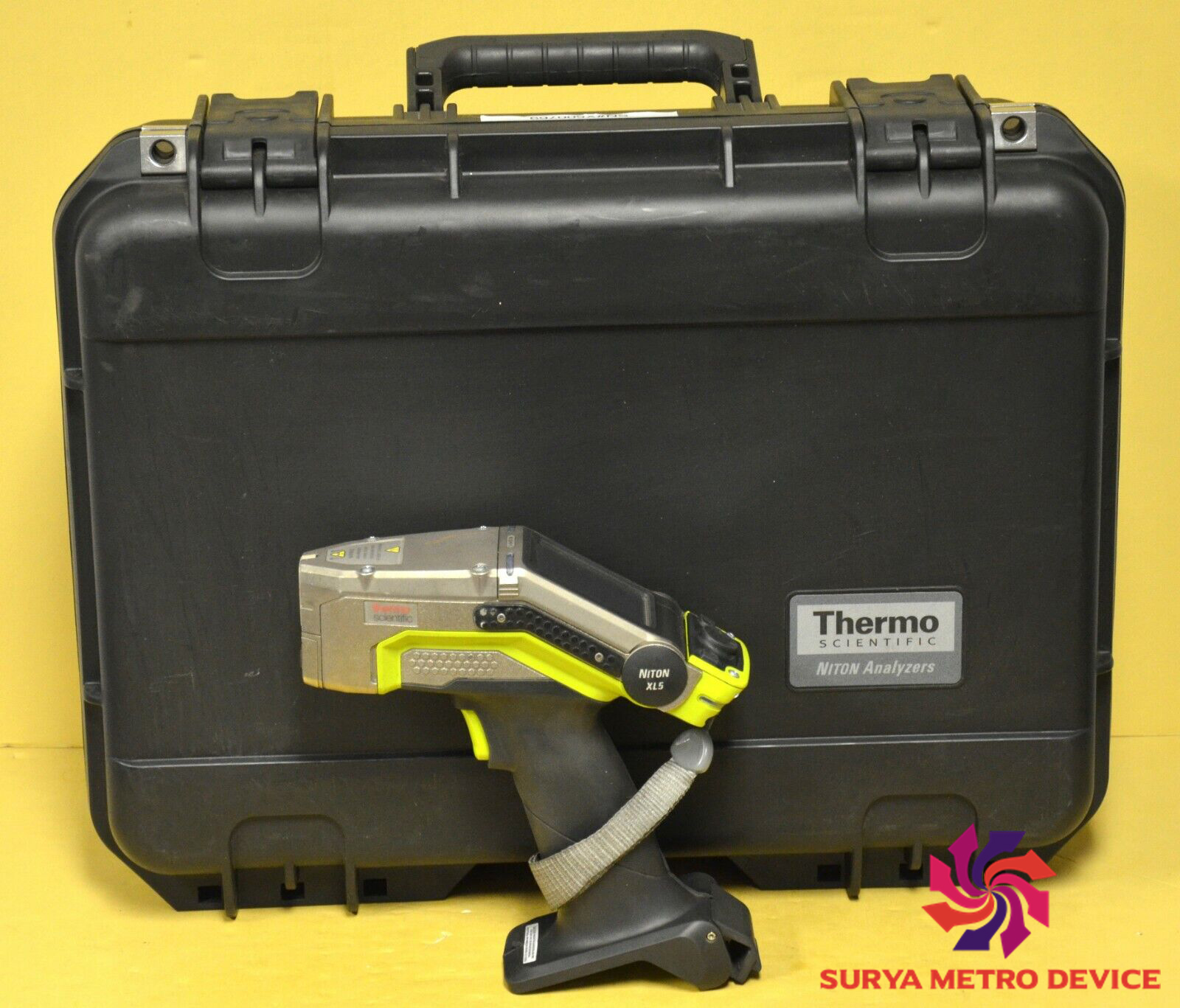

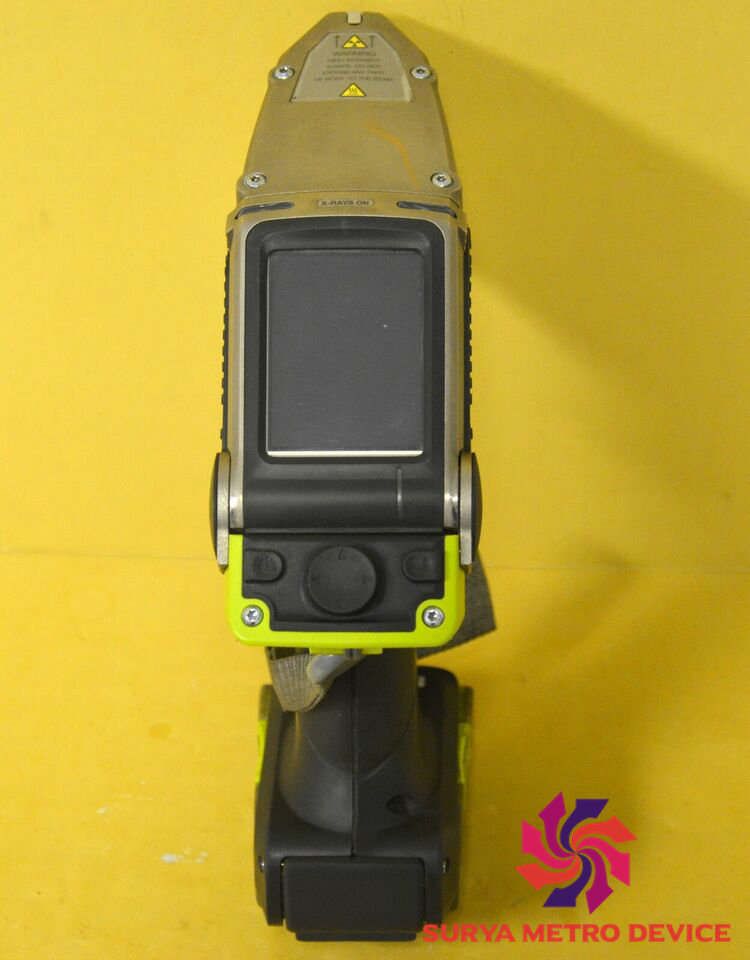

Niton XL5 XRF Alloy Metal Analyzer

Features of Niton XL5 Plus

5W X-ray tube
Proprietary large area drift detector for light element detection (Mg, Al, Si, P, S)
Lightweight design (2.8 lbs/ 1.3 kg)
Miniaturized nose
WiFi enabled
Macro and micro cameras
Hot swap battery
Tilting, color touchscreen
Directional keys
Password protected security
IP54 certified (splash/dust proof)

Applications

Verification of metals and alloys in manufacturing operations
Non-destructive field inspections for positive material identification
Point-and-shoot sorting at scrap recycling operations
Coating thickness measurements for single or binary metal layers
Precious metal assay of bullion and jewelry
Real-time geochemical analysis for mining exploration
On-site heavy metal screening of polluted soils
Screening of hazardous substances in consumer goods
Custom applications on demand

Specification :

Data Storage	512 MB internal system memory / 16 GB industrial grade storage; Stores approximately 130,000 readings with spectra (fewer if macro and micro images are saved)
Data Transfer	WiFi, USB-c
Description	Niton XL5 Plus Handheld XRF Analyzer
Detector Type	High count rate, high resolution, extra large area silicon drift detector (1μm graphene window). Detector ProGuard protection included.
Display Type	Tilting, color, resistive touchscreen display
Optional Accessories	Portable test stand Mini test stand Backscatter shield Hotwork stand off Soil guard Belt holster Bluetooth printer
Power Consumption	12V lithium-ion battery, or 12V DC, 3A, 3.6W power supply. Hot swap functionality keeps analyzer powered during battery replacements.
Security Features	Password-protected user security
Standard Accessories	Locking shielded carrying case Two (2) lithium-ion battery packs One (1) 110/220 VAC battery charger/AC adaptor Check samples Safety lanyard PC connection cable (USB)
System Details	Built-in standardization and health check verify system integrity and operating conditions
Weight (English)	2.8 lb. with battery
Weight (Metric)	1.3 kg with battery
Data Entry	Touchscreen keyboard User customizable data entry Optional wireless remote barcode reader
Licensing	Varies by region. Contact your local distributor.
Dimensions (L x W x H)	9.54 x 8.19 x 2.67 in. (24.23 x 20.8 x 6.78 cm)
Languages	English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Turkish, Italian
X-Ray Source Type	X-ray tube: Ag anode (6-50kV, 0-500uA, 5W max) Filter: Six (6) position filter wheel for enhanced spectral range coverage Current: Dynamically adjustable current for optimal sensitivity on every analysis
Spot Size	Standard: 8mm collimation Optional: 3mm small-spot collimation
Libraries	Default alloy libraries based on SAE, AISI, ASTM, AA, DIN, GB standards. Users may create, clone and edit libraries.
Operating Environment	Temperature: 0°C to 50°C (external fan recommended when ambient temperature is greater than 33°C) Humidity: 10% to 90% relative humidity non-condensing
Software	Support software: NitonConnect PC software
Global Positioning System	Internal GPS and optional external GPS (via Bluetooth) GPS data included with sample information.
Operating System	Linux
Certifications/Compliance	CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010
Unit Size	Each
