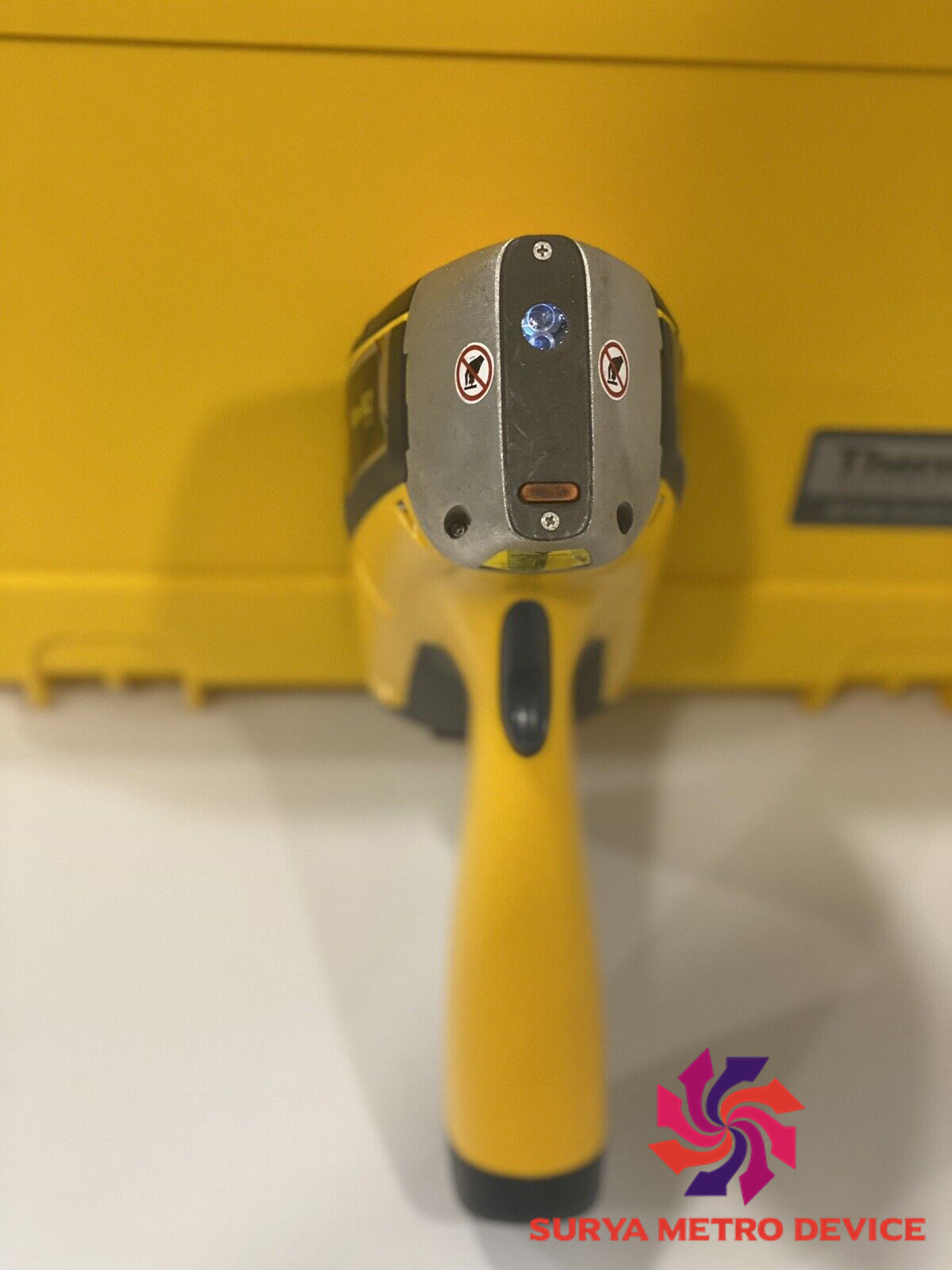

Niton XL2 980 GOLDD XRF Analyzer
Features & Benefits
- 2W X-Ray Tube
- Silicon Drift Detector (SDD) for light element detection (Mg, Al, Si, P, S)
- Detector ProGuard Protection
- Micro Camera
- Hot Swap Battery
- Touch Screen and Directional Keys
- Password Protected Security
- IP54 Certified (Splash/ Dust Proof)
- Nose Cone Alignment Guides
Applications Niton XL2 Plus
- Verification of metals and alloys in manufacturing
- Quality Assurance testing for positive material identification
- Point-and-shoot sorting at scrap recycling operations
- Coating thickness measurements from single element layers
- Precious metal assay of bullion and jewelry
- Geochemical analysis for ore trading and grade control
- On-site heavy metal screening of polluted soils
- Lead in paint inspection of industrial facilities
- Screening of hazardous substances in consumer goods
Specification Niton XL2 Plus:
| Applications | Identify pure metals and alloys, detect tramp elements, or obtain geochemical data |
| Analytical Range | Mg-U |
| Available Analytical Modes | General Metals, Precious Metals, Coatings, Mining, Soils, Electronic Alloys, Plastics, Industrial Lead in Paint, Lead in Paint Products |
| Data Storage | 64 MB internal system memory / 128 MB internal user storage Stores approximately 10,000 readings with spectra (fewer if images are saved) |
| Data Transfer | USB, Bluetooth, RS-232 serial communication |
| Description | Niton XL2 Plus Handheld XRF Analyzer |
| Detector Type | Silicon Drift Detector (SDD) Detector ProGuard protection included |
| Display Type | Fixed angle, color, resistive touchscreen display |
| Optional Accessories | Thermo Scientific
|
| Power Consumption | 7.4V lithium-ion battery, or 12V DC, 3A, 36W power supply Hot swap functionality keeps analyzer powered during battery replacements |
| Security Features | Password-protected user security |
| Standard Accessories | Locking shielded carrying case Two (2) lithium-ion battery packs One (1) 110/220 VAC battery charger/ AC adaptor Check samples Belt holster Safety lanyard PC connection cables (USB and RS-232) |
| System Details | Built-in standardization via automatic system check |
| Tube Voltage | 6 to 45 kV |
| Weight (English) | 3.4 lbs with battery |
| Weight (Metric) | 1.53 kg with battery |
| Data Entry | Touchscreen keyboard User customizable data entry Optional wireless remote barcode reader |
| Licensing | Varies by region. Contact your local distributor. |
| Dimensions (L x W x H) | 10 x 10.8 x 3.9 in (25.6 x 27.5 x 10 cm) |
| Camera | Integrated CCD micro camera for locating and recording measurement positions |
| Languages | English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Italian, Czech |
| X-Ray Source Type | X-Ray Tube: Ag anode (6-45kV, 1-200uA, 2W max) Dynamically adjustable current for optimal sensitivity on every analysis |
| Spot Size | 8 mm collimation |
| Libraries | Default alloy libraries based on SAE, AISI, ASTM, AA standards Users may create and edit libraries |
| Operating Environment | Temperature: -10°C to 50°C Humidity: 0% to 80% relative humidity non-condensing |
| Software | Support Software: Niton Data Transfer (NDT) PC software |
| Global Positioning System | Optional external GPS (via Bluetooth) |
| Bluetooth | Supports print functionality, external GPS connectivity and barcode reader |
| Operating System | Proprietary |
| Certifications/Compliance | CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1, UL 61010-1, IP54 (splash and dust proof) |
| Unit Size | Each |
