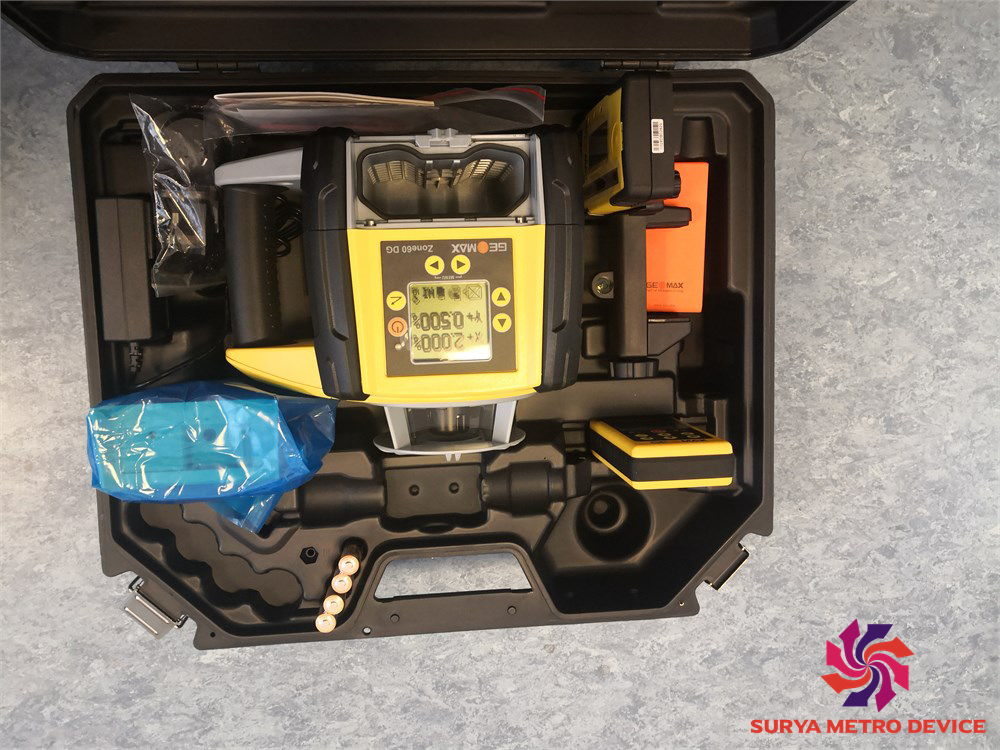

Geomax Zone60 DG Fully-Automatic Dual Grade Laser

Geomax Zone60 DG Fully-Automatic Dual Grade Laser

Zone 60DG is a fully-automatic device designed for construction workers who need the dependability of a professional grade laser. With a working range of up to 900 meters, the Zone60 DG also boasts an accuracy of 5mm at 100 meters. The Zone60 DG self-levels within ±6 degrees in both horizontal and vertical direction.

Beam catching and monitoring

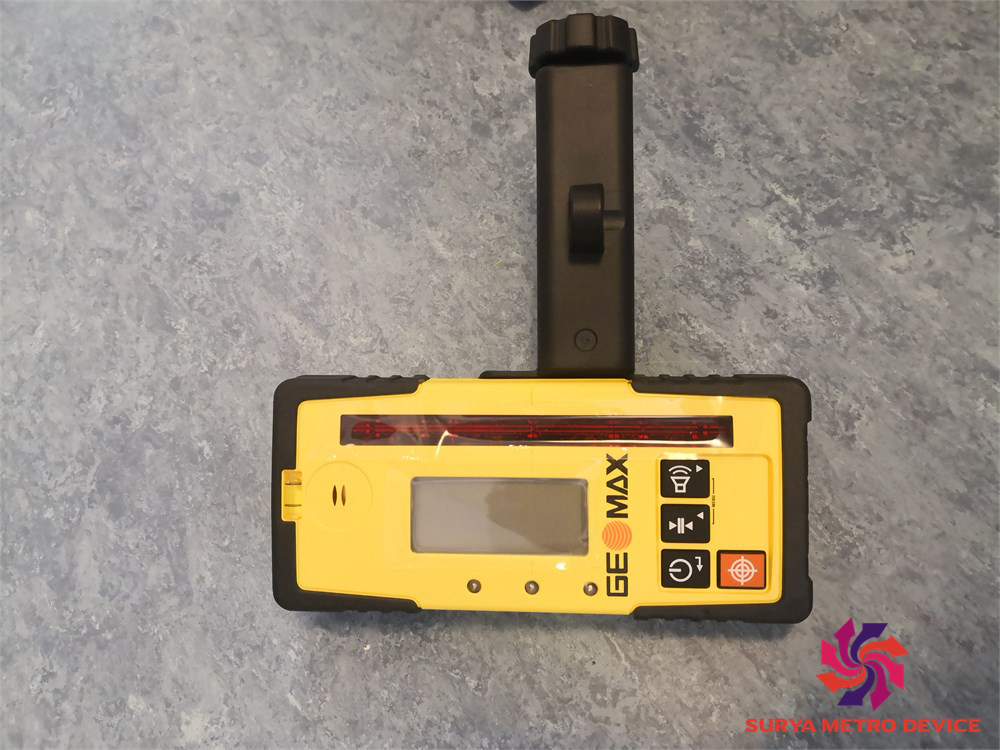

With the ZRD105B laser receiver the beam can be caught and monitored automatically. Fully-automatic grade specifically designed for construction workers who need the dependability and accuracy of a fully professional grade laser. With a straightforward user interface on both, the laser and the RF remote, the craftsman is always in full control.

Outlined with a grade range of up to 15 percent, this dual grade laser is designed with adjustable rotation speeds of 300 and 600 rpm, increasing its flexibility. Featuring digital slope in dual axis, the Zone 60DG can also be operated with a remote control for greater accuracy. In addition, this grade laser gives surveyors three receiver options to boost range and precision in every work

Highlights

• Range up to 3,000 feet ( 900 meters) with laser receiver
• Dual grade to ±15%
• Two adjustable rotation speeds
• Self-leveling within ±6 degrees
• Accuracy of ±1/16 inch at 100 feet ( 1,5mm at 30 meters)
• Adjustable rotation speeds: 300 & 600 RPM
• Battery life up to 40 hours
• IP67 dustproof and water resistant

Highlights

• Working range up to 3,000 ft. (900 m)
• Five on-grade detection accuracies 0,5mm.1mm,till 5mm
• Numeric readout height of 3.5”
• Beam Catching and Beam Lock (only ZRD105B)
• Dual display for easy reading
• Built-in flash suppression
• Bubble vial for accurate alignment
• Adjustable audio signals
• IP67 Protection Class
• 4” extended detection window
• Works with rotary lasers and grade lasers with Red beams
• Compatible with all Geomax lasers
• Dimensions (175 x 80 x 30mm)
