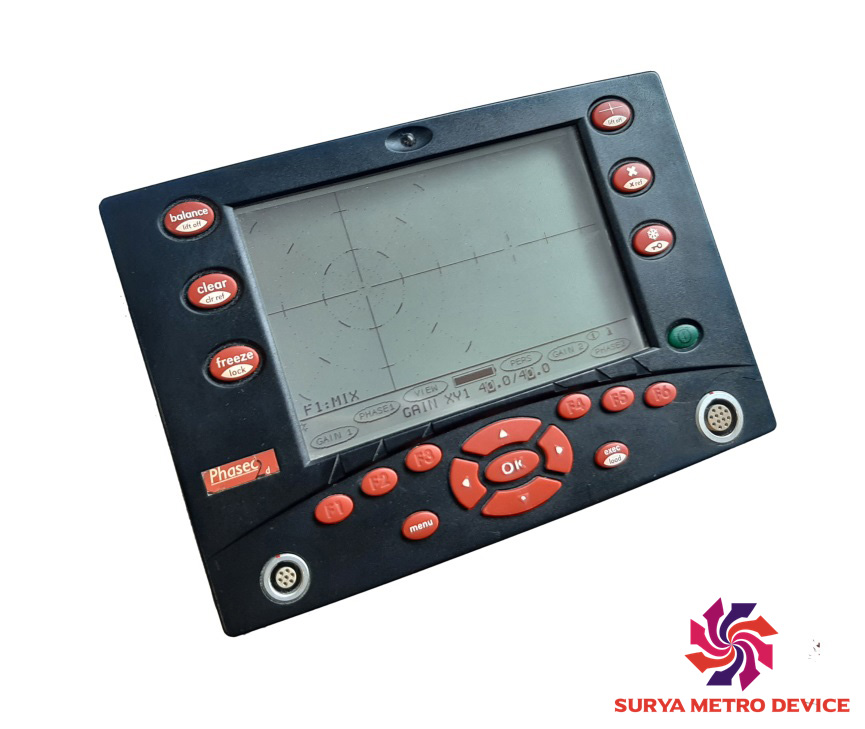

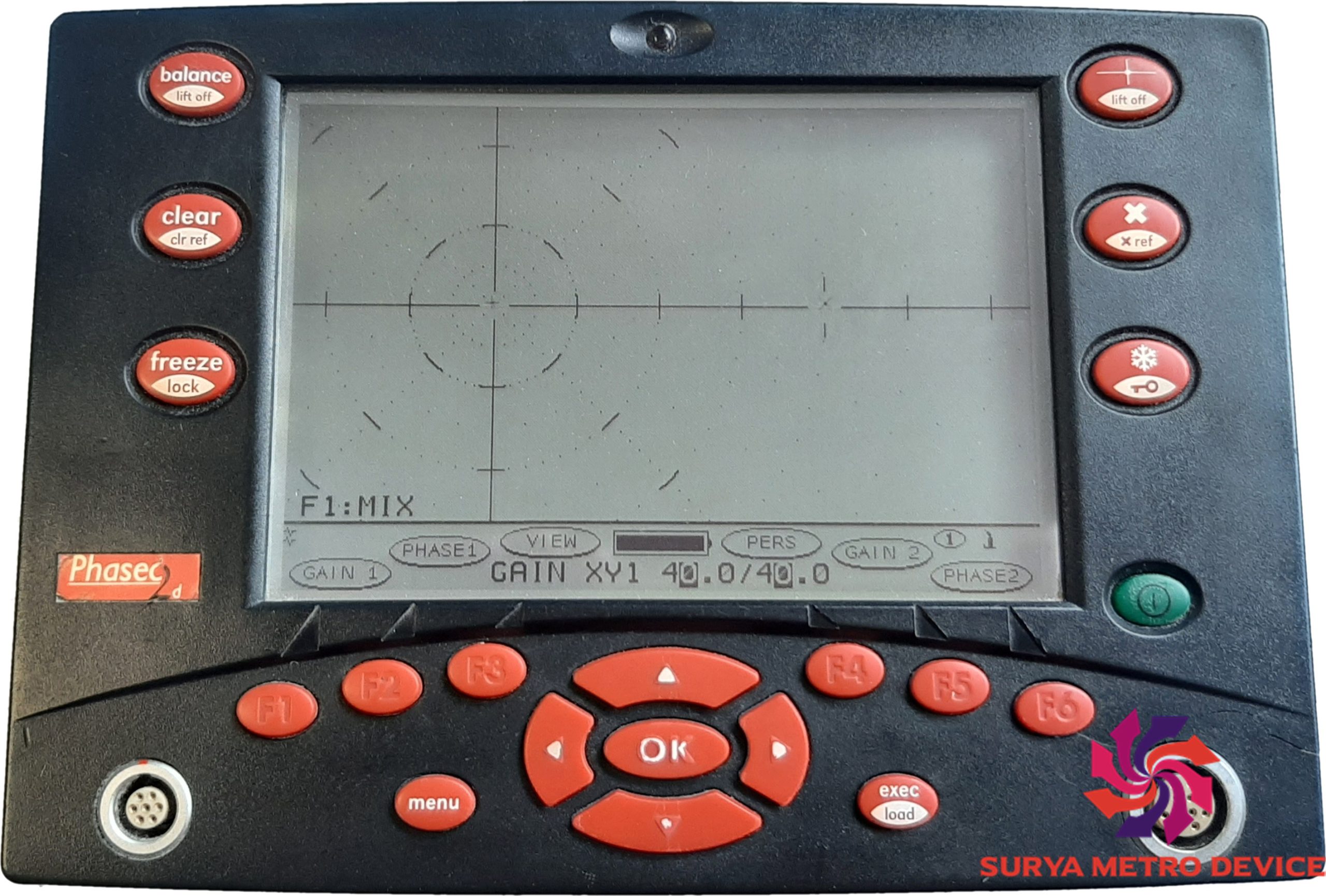

GE Hocking Phasec 3 Eddy Current Phased Array Flaw Detector
Specifications:
Key features
- Advanced LCD allows easy viewing in all light levels
- Band Pass and Ultra filters
- Compatible with most existing probes
- Conductivity and Coating Thickness modes
- Finds flaws and corrosion in metal components and structures
- Independent X & Y gain adjustment
- Light & portable – weighs just 0.94 kg
- Lithium-ion batteries typically run for up to 8 hours from a full charge
- Output via RS232
- Phase Plane/YT display modes
- Similar interface to Locator 2 allowing easy cross-training
- Simple set-up procedure
- Single Frequency Eddy Current Unit
- Storage of 50 setups and up to 50 traces
- Trace record with parameter adjustment to optimise signal
Applications
- General Crack Detection – Locator 3s can be used with a wide range of probes to detect surface-breaking and sub surface cracks. Adapters are available, allowing you to use other manufacturers probes.
- Conductivity Measurement – Locator 3s can measure the conductivity of metals. This can, among other things aid in the veri?cation of material hardness and in the identi?cation of materials as part of a quality control system.
- Coating Thickness Measurement – This function can be used to measure non-conductive coatings such as paint, and is often used as a quality control measure in the surface coating industry.
- Weld Inspection – Locator 3s can be used with Hocking s specially designed WeldScan probes to reliably and accurately test for cracks in welds.
- Fastener Inspection – Metal around fasteners, such as those found on aircrafts, must be inspected regularly to ensure their material integrity. Locator 3s, coupled with the appropriate probe, can easily and quickly carry out such inspections.
- Thread Inspection – Thread inspection is carried out in a range of industries, including aerospace, petrochemical, civil engineering and automotive. Locator 3s provides the ideal solution to ensure quality, safety and reliability.
| Operating Frequency | Normal: 60Hz to 6 MHz (198 steps per decade adjustment) Conductivity: 60kHz |
| Display | Display LCD with LED backlight. Protected by hard coated acrylic window. 480 x 320 pixel resolution 115 x 78mm viewable area |
| Gain | Adjustable together or as independent X and Y control for ultra precise setting. 0dB to 88dB overall in 0.1dB steps Input gain selectable 0d |
| Low and High Pass Filters | Low Pass : 3Hz to 2kHz in more than 500 steps High Pass : DC to 1.95kHz in more than 5000 steps |
| Alarms | Alarm options are: + and levels, Sector and Box Gate. Flashing LED s, internal sounder |
| Phase | 0 to 359.9 degrees in 0.1 degree steps. |
| Internal data storage | Capacity for up to 50 traces and 50 settings. 28 character alphanumeric names, plus time and date stamps. Dynamic data may be recorded and r |
| Conductivity and Coating Thickness Measurement | Capable of measuring electrical conductivity of materials in the range from 1 to 110% IACS |
| Probe compatability | Absolute Locator (100 ohm impedance) Absolute standard (50 ohm impedance) Bridge Re?ection Hocking Conductivity Probes |
| Balance Load | Manual or automatic. Selection from 1.3, 8.2, 22, 47, 82 or 120 ìH |
| Outputs | Standard RS232 via 5 way Lemo |
| PC Connectivity | Dedicated windows software allows easy reporting and printing. |
| Languages | English, French, German, Spanish, Portuguese |
| Battery charger/eliminator | 90 to 264 VAC, 47 to 440Hz |
| Probe connection | Via 7 way Lemo |
