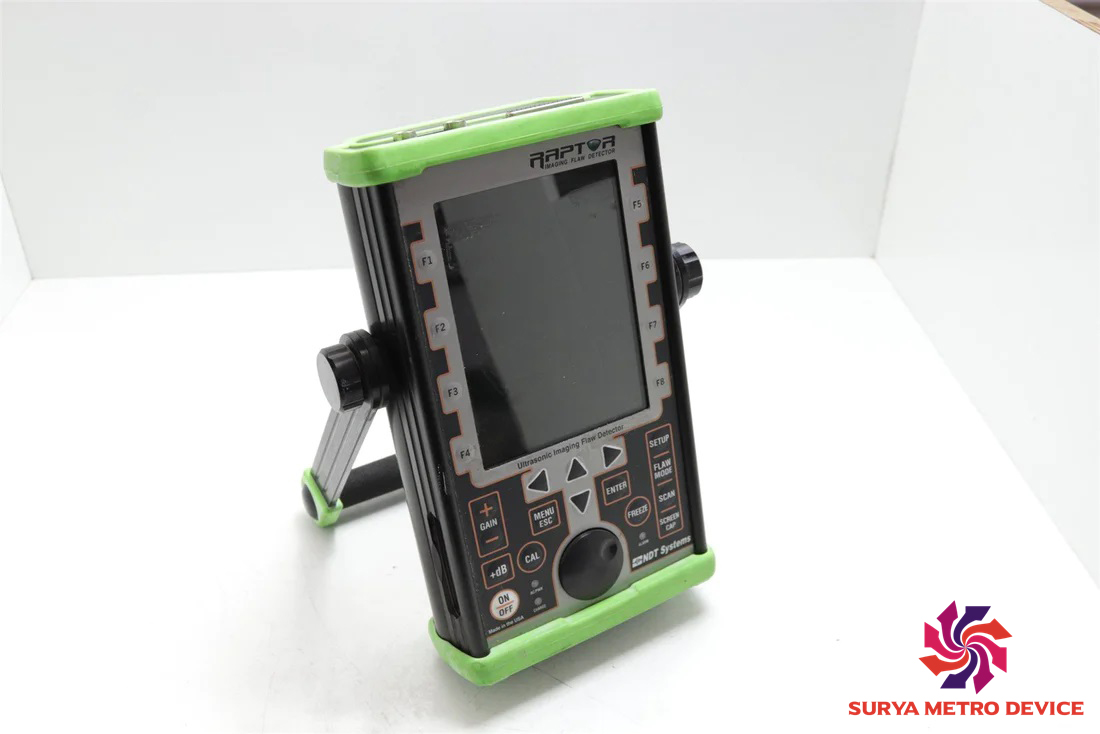

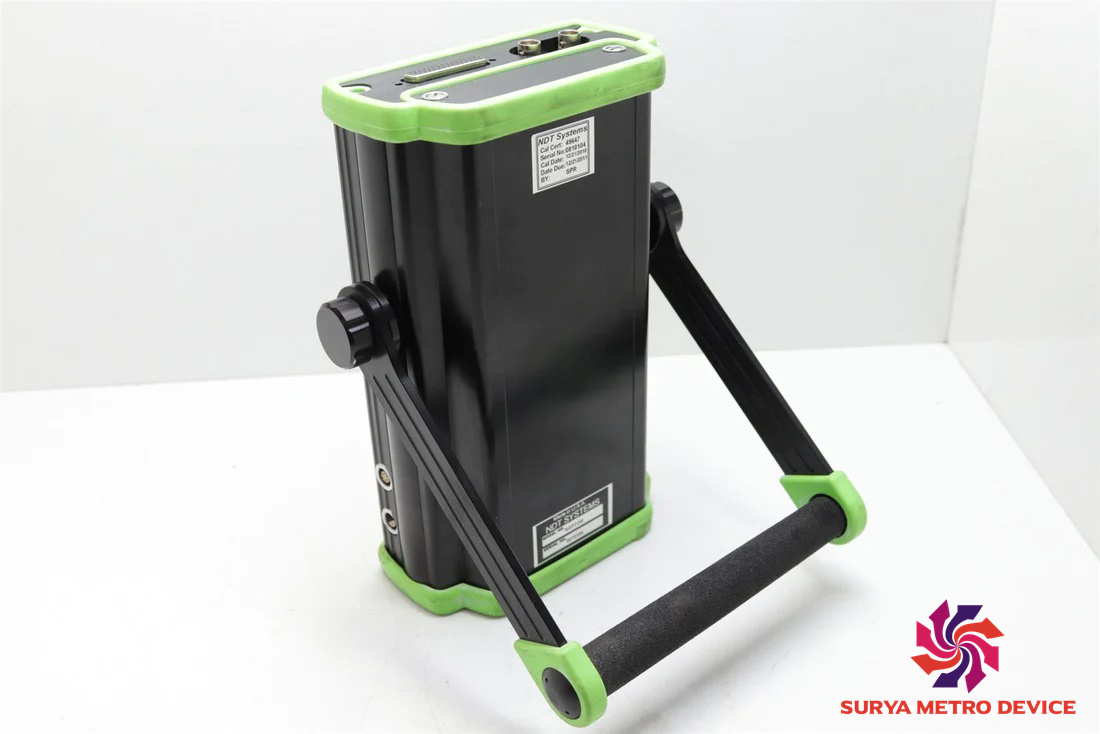

NDT Systems Raptor Advanced Imaging Flaw Detector

NDT Systems Raptor Advanced Imaging Flaw Detector

Key features
Spike or Square tunable wave pulser
0.5 MHz – 30 MHz receiver
25Ω – 375Ω (8 damping levels)
10Hz – 5000Hz PRF for high-speed scanning
Sun readable full VGA display 640 x 480
8 hours of battery autonomy
DAC/TGC incl. JIS, ASME, ASME-3 compliance
Shear mode for flat or curved surfaces (CSC)
AWS calculations as per D1.1/1.5 code
Imaging view: B/C-scan, spreadsheet, 3D, histogram
SplitScan view: Display A-Trace and B- or C-scan
2GB built-in and 2GB external/removable storage
Windows based RAPWIN software for post-processing
Quick and direct access to submenus with F1-8 keys
Rugged aluminum case with rubber end caps

Introduction
The Raptor is a high-speed flaw detector, a high-resolution thickness
gauge and a versatile and unique imaging system – all in one handheld
instrument. B- and C-scan imaging has never been this easy to
generate, and helps reducing inspection time along with easy result
interpretation.
Applications
High-end ultrasonic flaw detection
C-Scan imaging capabilities
Metals, plastics, composites, glass, rubber
Corrosion mapping from tubes to pressure vessels
Storage tanks and boilers glass inspection
Weld inspection per AWS D1.1/1.5 code
Investment castings turbine blade inspection

General Package Raptor unit, Li-Ion battery, AC charger (110-240V), User manual, COC, Pelican Case
Display Sun readable VGA | 60Hz | 640 x 480 pixels | 3.4in x 4.55in (86mm x 116mm)
Dimensions 5.75in x 9.5in x 3.0in, 5.6lbs | 146mm x 241mm x 76mm, 2.54kg
Power source Field-replaceable Li-ion battery (autonomy of 8 hours) or AC power
Operating temp 32 F – 122 F (0 °C to 50 °C)
Storage temp -4 F – 140 F (-20 °C to 60 °C)
Connector type Dual BNC
Transducer Type Single and dual element | Contact, Delay, Immersion, Shear, Through-transmission
Frequency 0.5 MHz – 30 MHz
Performance Resolution 0.0001 in (0.0025mm)
Velocity 0.0010 in/us – 1.0000 in/us
Gates Thickness gates IP-1st, 1st-2nd, 2nd-3rd | IP blocking, IF blocking, IF-1st blocking, 1st–2nd blocking
Linear flaw gates 2 independent linear gates | +- dB from gate, % of FSH, % of gate level
DAC flaw gates DAC curve (20-point) | +-3dB lines (JIS) | +-6dB lines (ASME) | -6/-14dB (ASME 3)
Alarm types Auditable and visual | Thickness high, low, both | Amplitude higher, lower
Modes TCG mode TCG (Time Corrected Gain) available in all modes | automatic or manual setup
Shear wave mode Flat plate or pipe (CSC – Curved Surface Correction) | All gate types available
AWS-code mode AWS D1.1/1.5 calculations (A, B, C, D values automatically calculated)
Pulser/Receiver Pulse type Spike or Square tunable wave pulser
Pulse width 20ns – 10.000ns (square pulse mode only)
Pulse volts 50 to 450V
PRF 10Hz – 5000Hz
Receiver Gain 0 – 100dB (up to 0.1 increments)
Damping 25Ω – 375Ω (8 damping levels)
Tuning BB, 0.5 MHz, 1 MHz, 2.5 MHz, 5 MHz, 10 MHz, 15 MHz
Bandwidth Narrow or Wide
Display modes RF, +HW, -HW, FW
Storage Internal 2GB
External 2GB SD Card (included)
Connectivity PC Software Windows based RAPWIN software for imaging analysis (included)
Imaging Scan type Time or position encoded B-Scan, position encoded C-Scan
Scanners Manual scanners Armadillo (1-D) Motorized Scanners CrosScan
StringScan 18×18, 24×24 RCA-10, 18
SlideScan Tunnel Scan I, II, III
Customized scanners NDT Systems has been involved in many one-off customized scanning solutions
