Faro Focus3D X 330 Laser Scanner

Faro Focus3D X 330 Laser Scanner

Focus 3D X330 Features:
Distance accuracy up to ±2mm
Range from 0.6m up to 330m
Noise reduction 50%
Measurement speed: up to 976,000 points/second
Integrated colour camera: Up to 70 mio. pixel
Laser class: Laser class 1
Weight: 5.2kg
Multi-Sensor: GPS, Compass, Height Sensor, Dual Axis Compensator
Size: 240 x 200 x 100mm

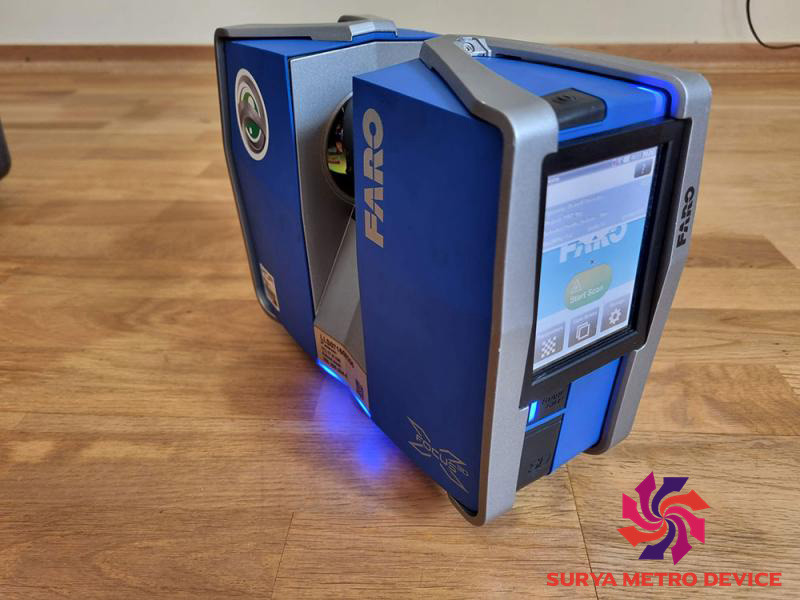

Scanner control: via touchscreen display and WLAN

Extended outdoor scanning in full sunlight

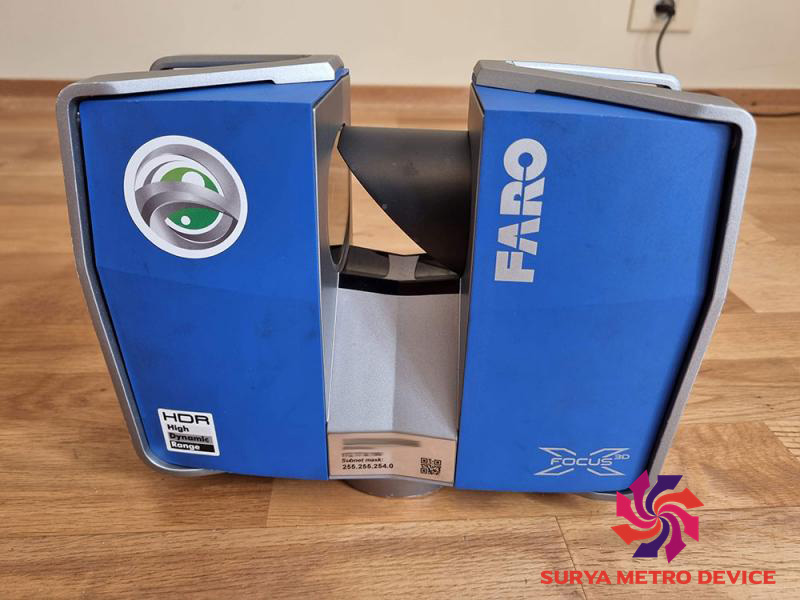

The new FARO Focus3D X 330 a high-speed 3D scanner with extra-long range. The Focus3D X advances into entirely new dimensions: it can scan objects up to 330 meters away even in direct sunlight.

With its integrated GPS receiver, the laser scanner is able to correlate individual scans in post-processing making it ideal for surveying based applications.

With its increased range and scan quality, the FARO Focus3D X 330 considerably reduces the effort involved in measuring and post-processing. The 3D scan data can easily be imported into all commonly used software solutions for accident reconstruction, architecture, civil engineering, construction, forensics, industrial manufacturing and land surveying. Distance dimensions, area and volume calculations, analysis and inspection tasks and documentation can thus be carried out quickly, precisely and reliably.

Benefits
The new FARO Focus3D X 330 is the leading tool for surveying and 3D documentation.
Scanning range – 330m, integrated GPS, the possibility to work in direct sunlight as well as the specially for the scanner designed protection cover make it a ideal tool for outdoor enviroments.

Extended scanning – 330m range
The Focus3D X 330 can scan objects up to 330 meters away. Large buildings, land-site excavations and vast terrains can be surveyed with fewer scans, thus resulting in quicker project scanning completion.

Easy positioning – integrated GPS receiver
With its integrated GPS receiver, the laser scanner is able to correlate individual scans in post-processing making it ideal for surveying based applications.

Outdoor scanning capability
The Focus3D X 330 now is able to perform fast and highly precise scanning in direct sunlight

Low noise performance
The new FARO Focus3D X 330 delivers extraordinary scan data quality at extended range with very low noise.

Wireless LAN
WLAN remote control permits you to start, stop, and view scans at a distance.
