Name: Creaform GoSCAN 20 3D Scanner
SKU: 6145
Availability: InStock

Creaform GoSCAN 20 3D Scanner

In stock

Creaform Go SCAN 20 3D scanners: they’re very fast, delivering consistent high-quality 3D models in HD color. Through their highly intuitive process, these handheld, self-positioning systems can be used by anyone without prior experience or training. Their underlying technology accelerates the overall experience: no preparation or specific setup needed, large scanning area, fast measurement, and direct mesh output. The resulting 3D models can be integrated to any computer-assisted process like archiving, restoration, analysis or content creation.

Buy it now

Creaform GoSCAN 20 3D Scanner

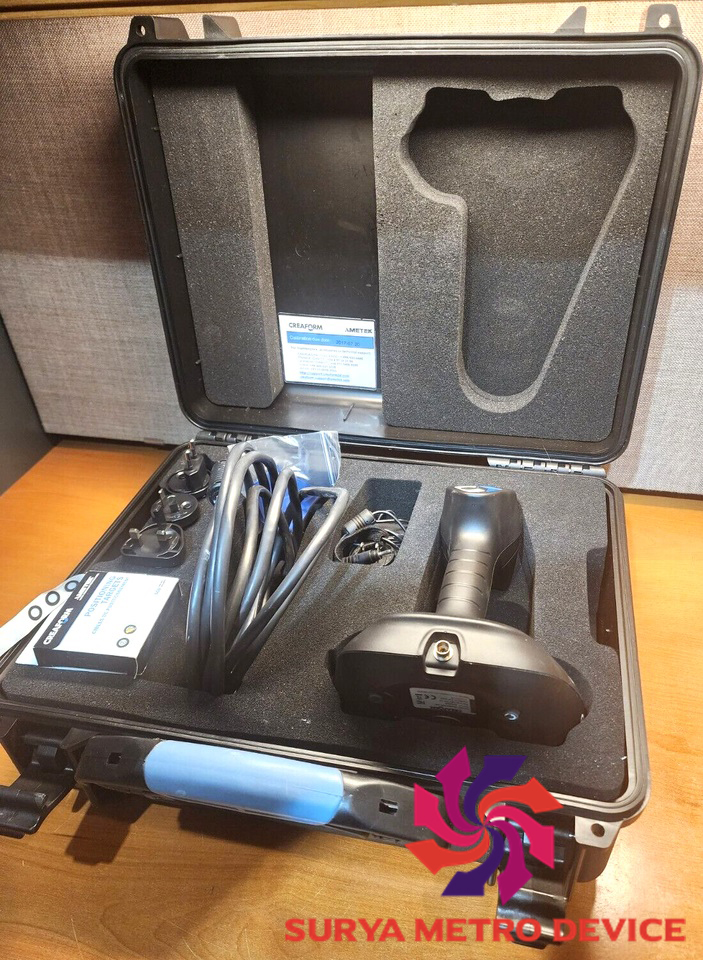

Creaform Go SCAN 20 package includes;

Creaform GoSCAN 20 3D Scanner
VXelements software

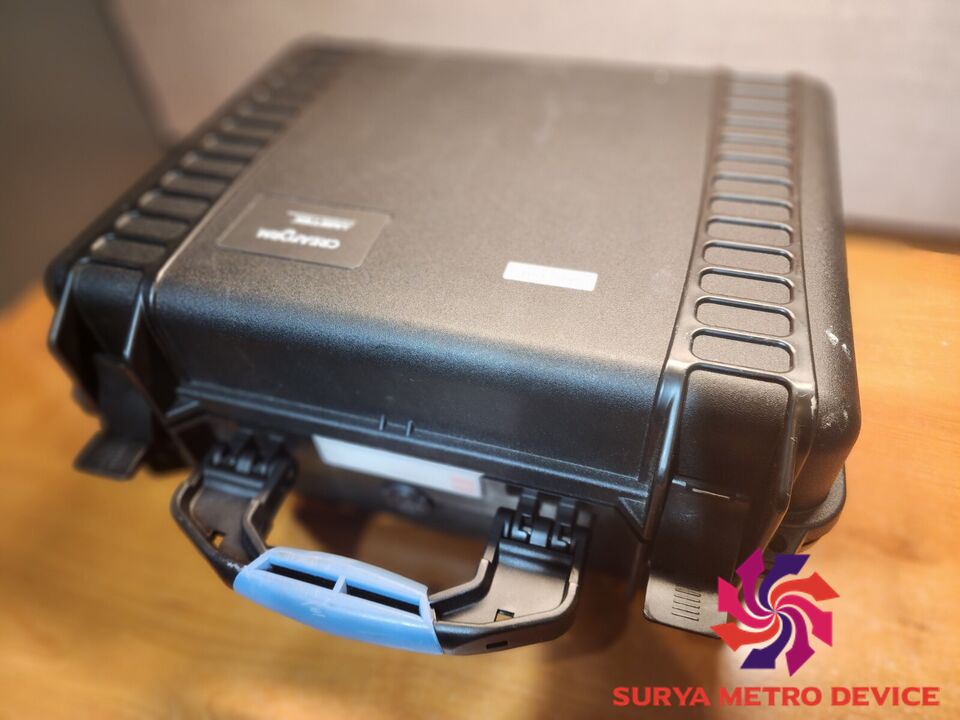

Carrying case
4 meters custom USB cable
18v power supply
7” x 10” calibration plate
3mm Light Adhesive Positioning Targets – 500/box
3 mm Positioning targets with black contour 1×500
3 mm Positioning targets with black contour and light adhesive 1×500
3D scanning manual turntable
Triangular references for GO!SCAN 20 – set of 15 – (angular support for 3mm targets to use along with Go!SCAN 20 only)
1 year warranty, parts and labor

Specifications

Weight: 930 g (2.1 lbs.)
Dimensions: 154 x 178 x 235 mm
Measurement Rate: 550,000 measures /sec.
Scanning Area: 143 x 108 mm
Light Source: White light (LED)
Resolution: 0.100 mm
Volumetric Accuracy: 0.300 mm/m
Positioning Methods: Geometry and/or color and/or targets
Stand-Off Distance: 380 mm
Depth-Of-Field: 100mm
Part size range (recommended): 0.05 – 0.5 m
Texture Resolution: 50 to 250 DPI
Texture Colors: 24 bits
Software: VXelements
Output Formats: .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
Compatible Software: 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Dassault Systèmes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage).
Connection Standart: 1 x USB 2.0
Operating Temperature Range: 5-40 °C
Operating Humidity Range (Non-Condensing): 10-90%

Show More Show Less
