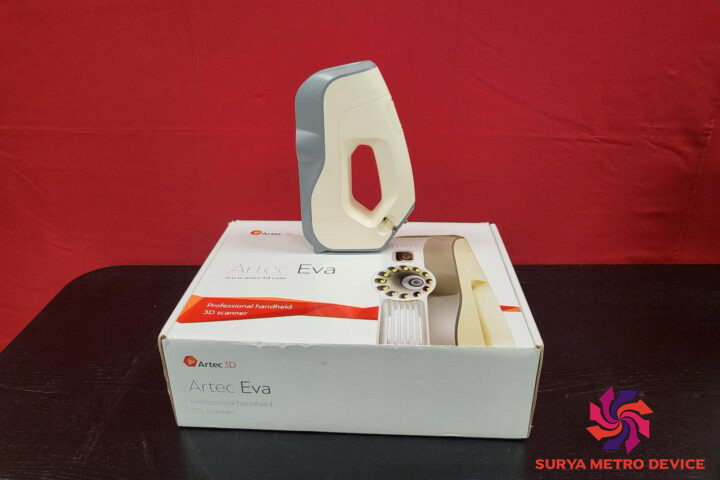

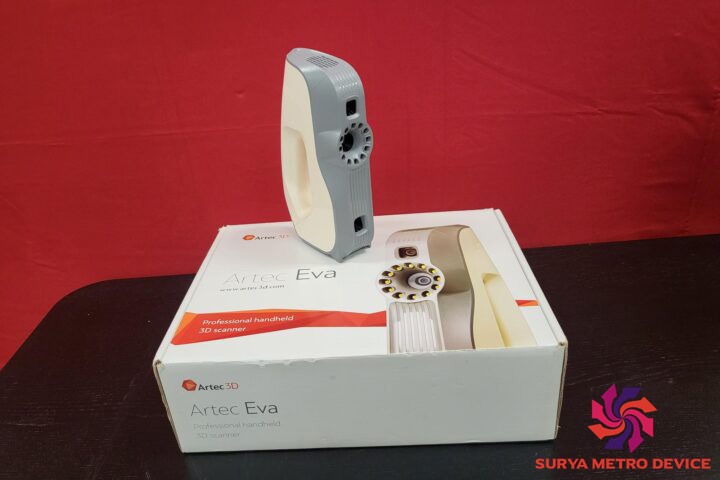

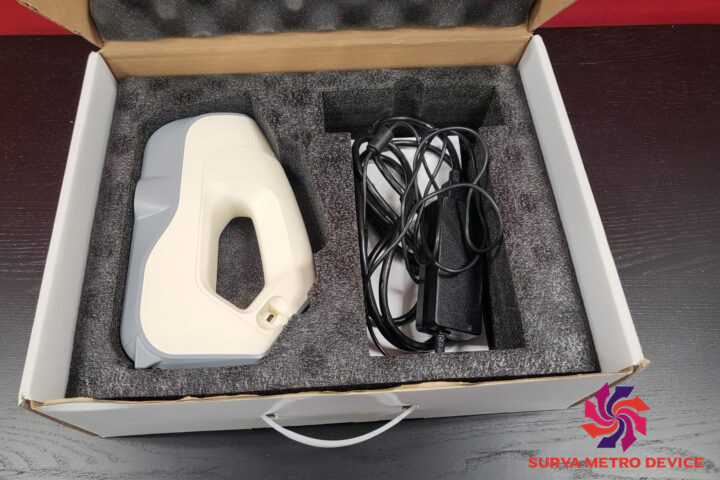

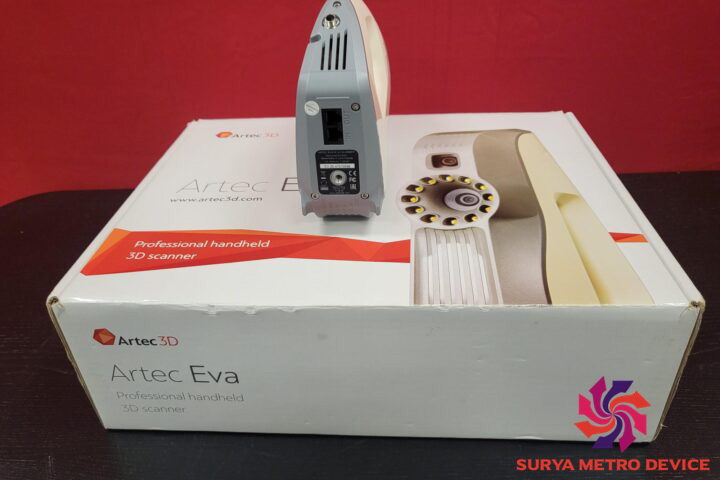

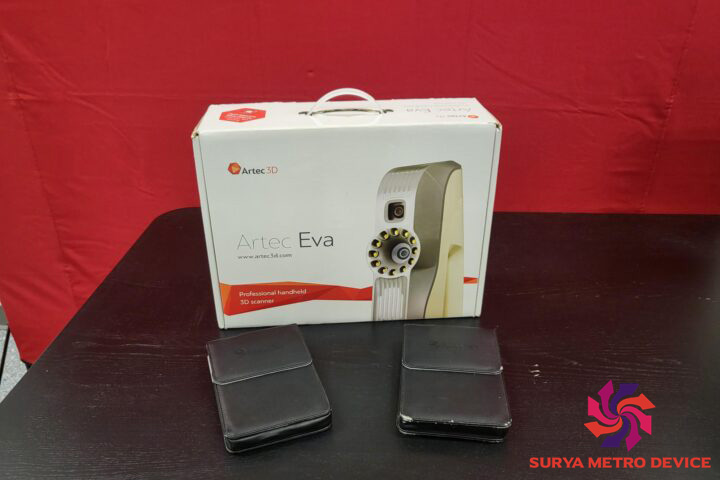

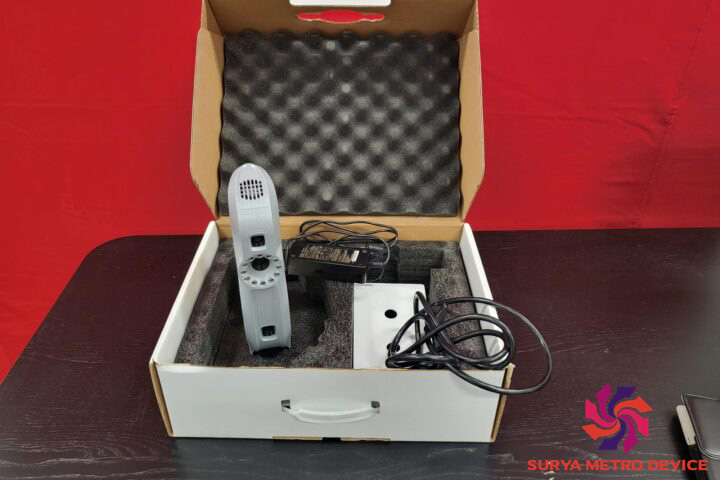

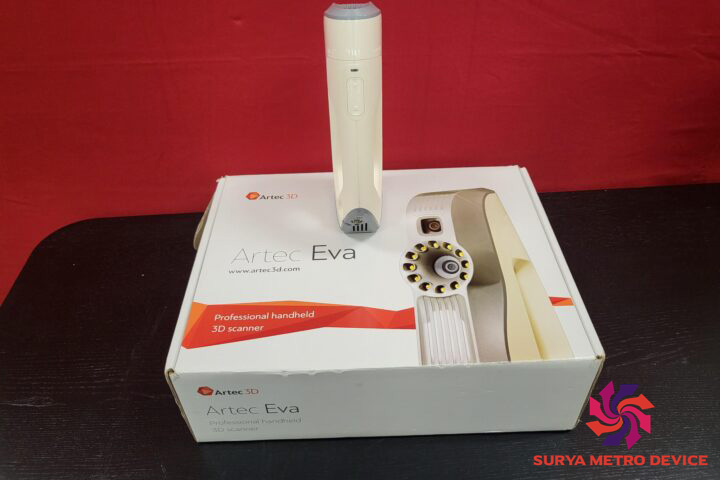

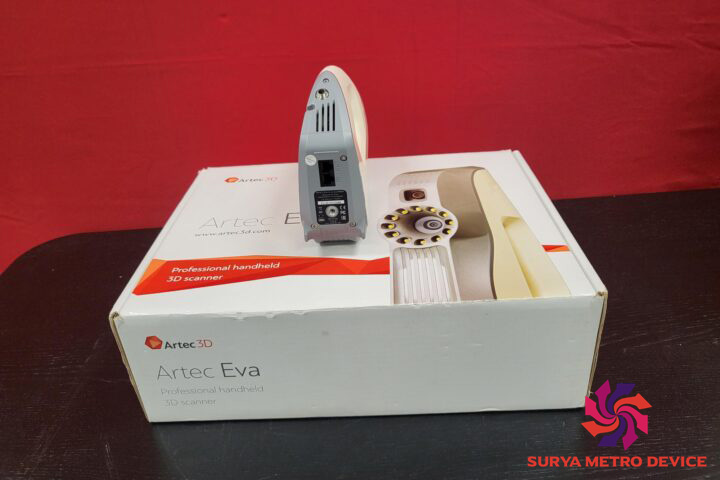

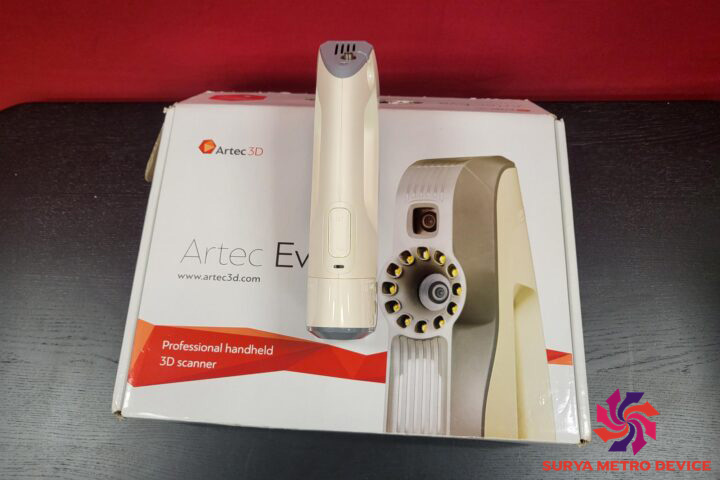

Artec Eva 3D Scanner
Fast 3D scanner for professionals
This structured-light 3D scanner is the ideal choice for making quick, textured, and accurate 3D models of medium-sized objects such as a human bust, an alloy wheel, or a motorcycle exhaust system. It scans quickly, capturing precise measurements in high resolution.
Light, fast, and versatile, Eva is our most popular scanner and a market leader in handheld 3D scanners. Based on safe-to-use structured-light scanning technology, it is an excellent all-around solution for capturing objects of almost any kind, including objects with black and shiny surfaces.
GENERAL SPECIFICATIONS ARTEC EVA
- 3D resolution: Up to 0.5 mm
- 3D point accuracy: Up to 0.1 mm
- 3D accuracy over distance: Up to 0.03% over 100 cm
- Colors: 24 bpp
- Texture resolution: 1.3 mp
- Scanning technology: Structured light
- Structured light source: Flashbulb (no laser)
- Working distance: 0.4 – 1 m
- Linear field of view: Closest range 214 x 148 mm
- Linear field of view: Furthest range 536 x 371 mm
- Angular field of view: 30 x 21°
- Video frame rate: Up to 16 fps
- Exposure time: 0.0002 sec
- Data acquisition speed: Up to 2 mln points/sec.
- Multi-core processing: Yes
OUTPUT FORMATS
- 3D formats: OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB
- Formats for measurements: CSV, DXF, XML
COMMON SPECIFICATIONS ARTEC EVA
- Weight: 0.85 kg (1.9 lb)
- Dimensions: 262 x 158 x 63 mm
- Power consumption: 12V, 48W
- Interface: USB 2.0, USB 3.0 compatible
- Processing capacity: 40 mln triangles / 1 GB RAM
REQUIREMENTS
- Processor: Intel I5 or I7
- Memory: 12 GB
- Video cards: NVIDIA or AMD
- Recommended: NVIDIA GeForce 400 Series or higher, at least 1 GB of memory
- OS: Windows 7, 8, 10 – x64
- Free disk space: 300 MB for installation
