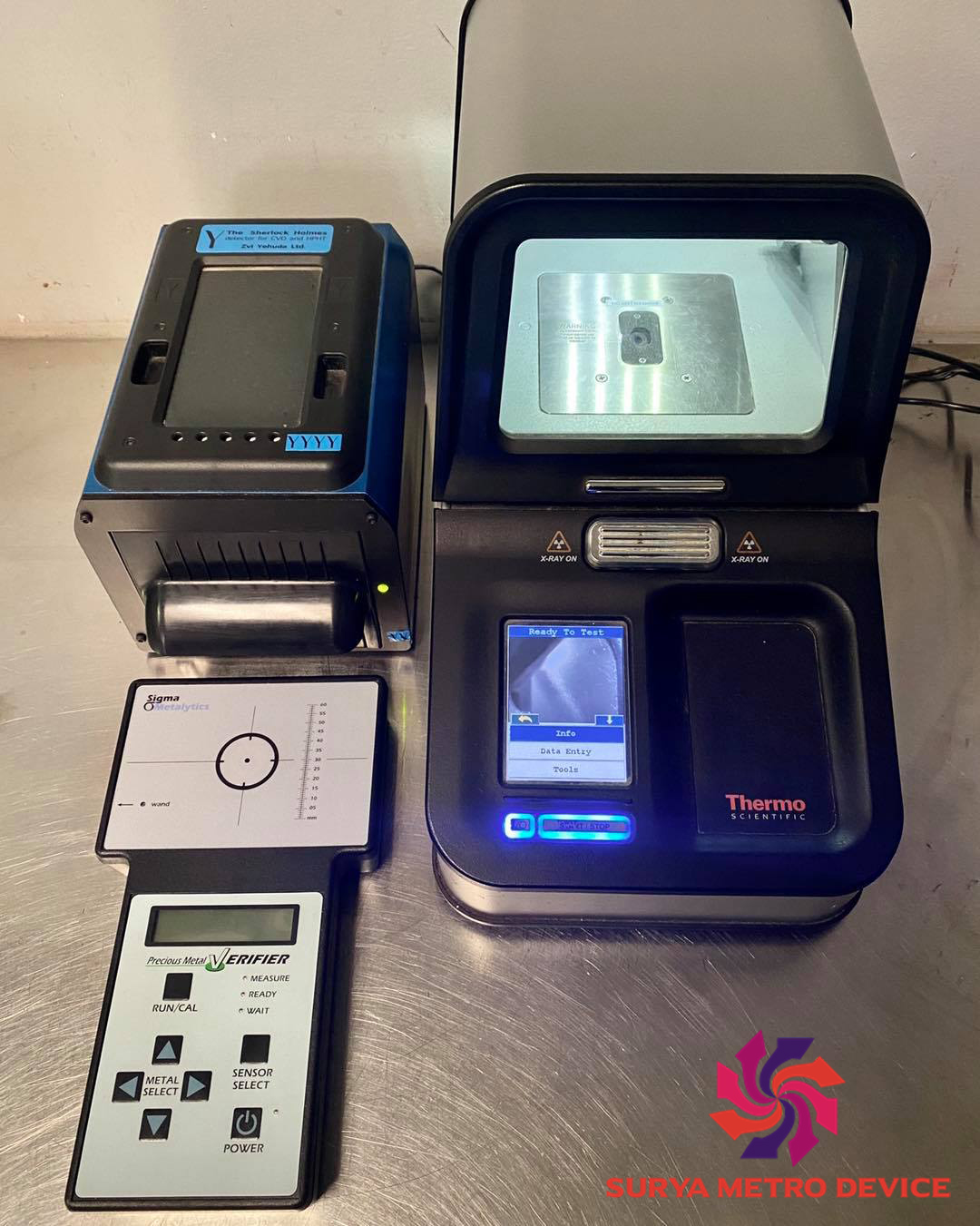

Thermo Scientific Niton DXL Precious Metal Analyzer
Just a few seconds is all it takes to measure the exact precious metal content in jewelry, coins, and other valuable products using the Niton DXL Precious Metal Analyzer.
- Standard analytical range: 21 elements including all precious metals.
- Nondestructive analysis with near instantaneous results.
- Exceptionally fast, easy to use – see results in seconds on a bright, touch-screen color display.
- No harsh chemicals or acids that can burn your fingers, ruin clothing, and damage countertops.
- Easier, faster and more accurate than nitric acid test methods.
- Faster, more comprehensive analysis than fire assay, with comparable accuracy.
- Compact, elegant, ergonomic design for countertop placement in retail environments.
- Measure the content of all gold and precious metals without manually changing the calibration.
- Precisely determine the presence and concentration of other trace alloying elements and dangerous heavy elements, which could impact valuation and future refining needs.

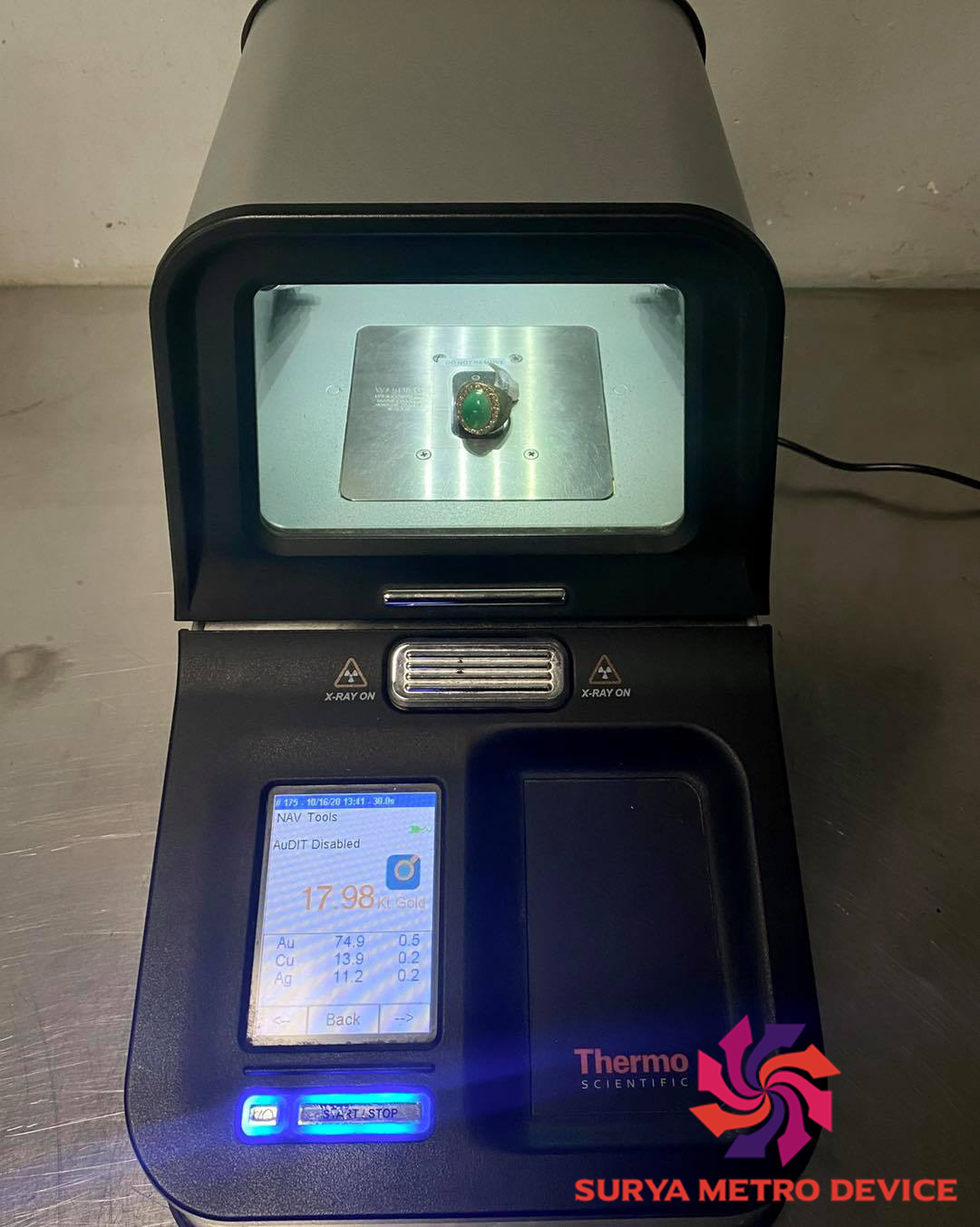

- Built-in CCD camera makes precise sample positioning effortless.
- Optional small‑spot focus allows isolation and testing of small components.
FEATURE :
| Applications | Non-destructive method to test the purity and chemistry of precious metals |
| Data Memory | 64MB internal system memory/ 128MB internal user storage |
| Data Storage | Internal >10,000 readings with spectra |
| Data Transfer | USB |
| Description | Niton DXL Precious Metal Analyzer |
| Detector Type | High-performance Si-PIN semiconductor |
| Display Type | Color touch-screen display |
| Item Description | Niton DXL Precious Metal Analyzer |
| Height (English) | 10.4 in. |
| Height (Metric) | 265 mm |
| Length (English) | 15.6 in. |
| Length (Metric) | 396 mm |
| Width (English) | 8.1 in. |
| Width (Metric) | 206 mm |
| Length (English) Chamber | 6.9 in. |
| Length (Metric) Chamber | 172 mm |
| Height (English) Chamber | 5.2 in. |
| Height (Metric) Chamber | 133 mm |
| Width (English) Chamber | 7.2 in. |
| Width (Metric) Chamber | 184 mm |
| Optional Accessories | 3mm small-spot focus feature; Additional battery pack; External battery charger; Locking shielded carrying case |
| Power Consumption | 80µA |
| Security Features | Password-protected user security |
| Standard Accessories | One 7.2V 4-cell lithium-ion battery pack (charges in the instrument while on external power); 110/220V AC adapter; USB PC connection cable; Thermo Scientific™ Niton Data Transfer (NDT™) PC software; 8mm measurement area; Internal CCD camera for precise sample positioning; Adhesive Tack for stabilization of samples; Spare puncture-resistant x-ray windows |
| Tube Type | Ag anode 45kV maximum, 80µA maximum |
| Tube Voltage | 45kV |
| Weight (English) | 17 lb. |
| Weight (Metric) | 7.7 kg |
| Voltage | 45 kV |
| System Electronics | 400MHz ARM 11 CPU; 300MHz dedicated DSP; 80MHz ASICS DSP for signal processing; 4096 channel MCA; |
| Data Entry | Touch-screen keyboard, user-programmable pick lists |
| Licensing | Varies by region. Contact your local distributor. |
| Dimensions (L x W x H) | 15.6 x 8.1 x 10.4 in. (396 x 206 x 265 mm) |
| Certifications/Compliance | CE, RoHS |
| Unit Size | Each |
