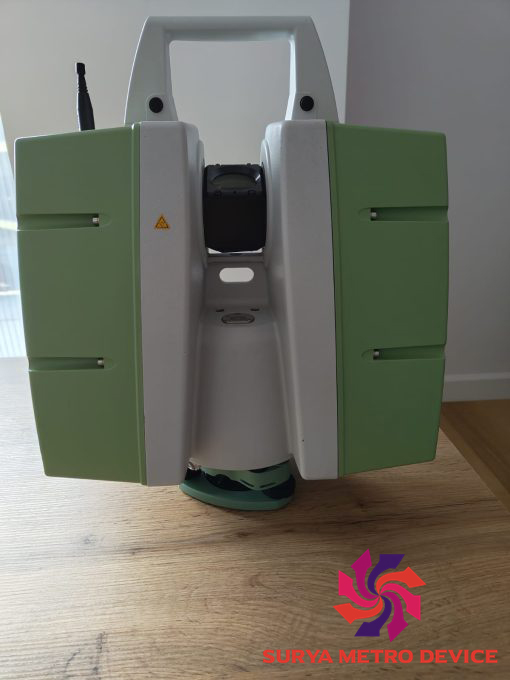

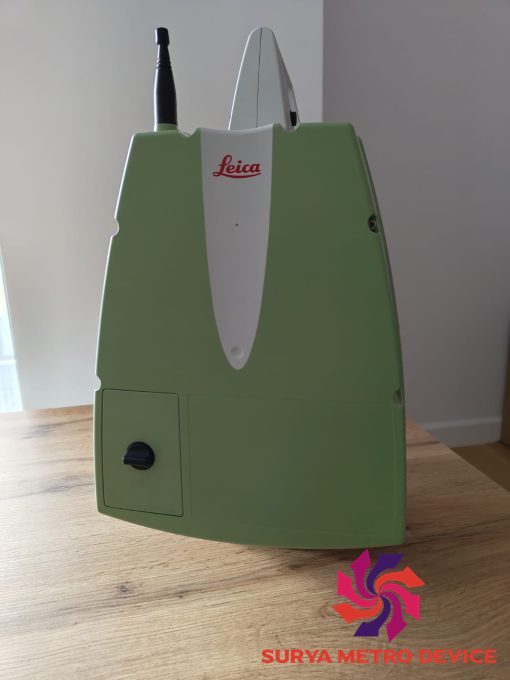

Leica P20 ScanStation Laser Scanner

Leica P20 ScanStation Laser Scanner

SPECIFICATION OVERVIEW

• Up to 120 m scanning range
• 1,000,000 points/sec scanning rate
• 360 degrees horizontal or 270 degrees vertical field-of-view
• 256 GB onboard SSD or external data storage capacity
• Up to 50 Hz scanning optics with internal battery
• 5 MP with each 17 x 17 degrees color image
• 658 nm visible wavelength
• 640 x 480 pixels onboard display
• -20 to +50 degrees C operating temperature
• 100 to 240 VAC power supply and 40 Watt power consumption

Includes;

– 1x Leica ScanStation P20

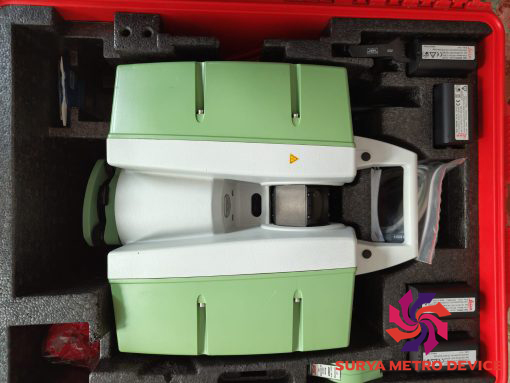

– 1x Leica ScanStation P20 Container
– 1x GKL311 Battery Charger
– 1x GHM008 Scanner Height Meter
– 5x 6” Grey and White Tilt and Turn Targets
– 4x Brand New GEB242 Scanner Batteries

Productivity & Accuracy

An innovative combination of advanced time-of-flight range measurement plus modern Waveform Digitising (WFD) technology enables the compact Leica ScanStation P20 to achieve ultra-high scan speeds and low-noise performance at extended range (to 120 m). Together with high-accuracy angular measurements and survey-grade tilt compensation, Leica ScanStation P20 delivers unprecedented ultra-high speed scan data quality for as-built and scene surveys.

Scan up to 1 million points per second

Leica ScanStation P20 is the ideal instrument when very short time windows are available for capturing High-Definition Survey™ data or when ultra-high density, full dome scan data is needed for client deliverables.

Unmatched environmental capabilities

Developed and manufactured by Leica Geosystems, Leica ScanStation P20 lets users apply ultra-high speed scanning in operating temperatures ranging from –20° C to +50° C. Moreover, with an Ingress Protection rating of IP54 and an eye-safe laser class 1 rating, users can reap the benefits of ultra-high speed scanning for even more sites and projects.
