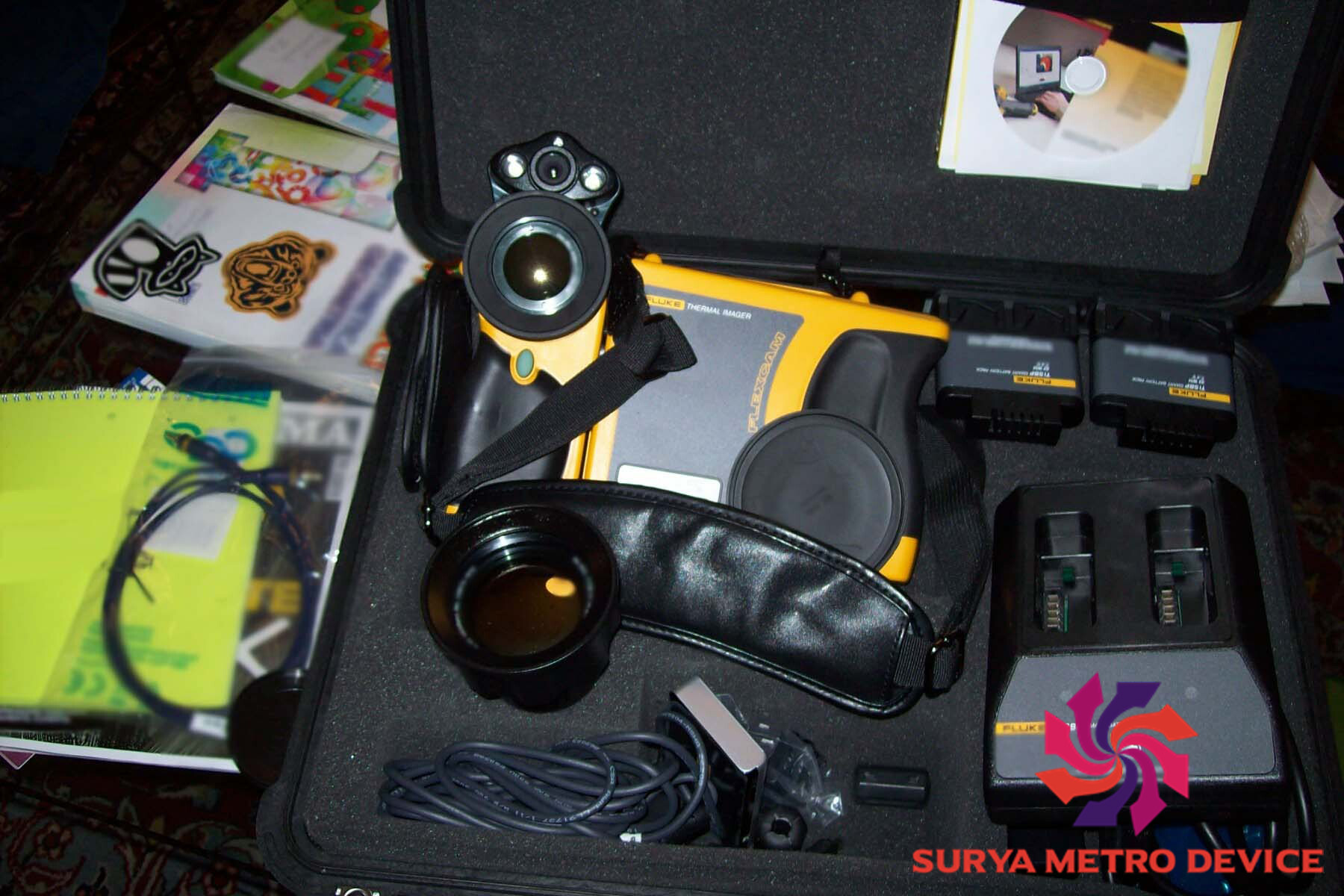

Fluke Ti55FT Flexcam Thermal Imager

Fluke Ti55FT Flexcam Thermal Imager

Key features

Fluke IR-Fusion Technology

Infrared and Visible light images are fused together – enabling you to view images in a range of modes from full IR to full visible light, and see exactly what you are viewing.

See exactly what you are viewing

Fluke IR-Fusion® technology links a real world visual image with a thermal image. It merges the two images into one, with the possibility to blend between the two images or create picture-in-picture combinations. Alarm limits can be superimposed over the visible light image to exactly pinpoint the components exceeding a specified temperature limit. Both the visual images and thermal images are available for use in reports. This speeds up documentation by reducing the need to look for individual images taken with a separate digital camera. IR Fusion helps to better identify and report suspect components and enable the repair to be done right the first time.

Specifications :

Calibrated temperature range : -20°C to 600°C (-4 to 212°F) in 3 ranges

Range 1 : -20°C to 100°C (-4 to 212°F)

Range 2 : -20°C to 350°C (-4 to 662°F

Range 3 : 250°C to 600°C (482 to 1112°F)

Accuracy : ±2°C or 2% (whichever is greater)

Measurement modes : Centerpoint, center box (area min/max, average), moveable spots/boxes, user defined field/text annotations, isotherms, automatic hot and cold point detection, visible color alarm above and below

Emissivity correction 0.1 to 1.0 (0.01 increments)

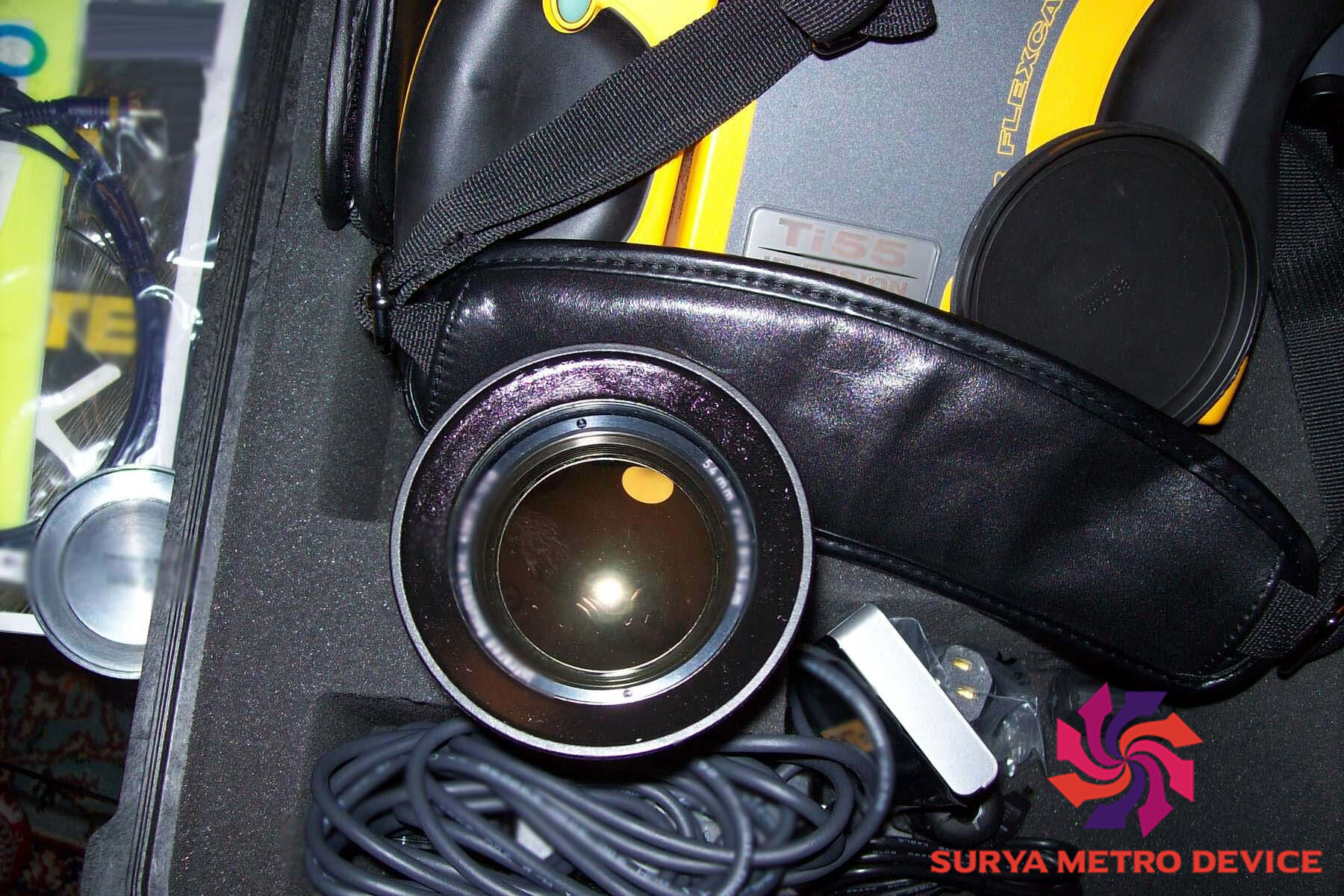

Thermal Field of view (FOV) : 20 mm lens 23° x 17° FOV 10.5 mm lens 42° x 32° 54 mm lens 9° x 6°

Spatial resolution (IFOV) : 1.30 mrad

Thermal sensitivity (NETD) : ≤ 0.05°C (50 mK)at 30°C

Detector data acquisition : 60 Hz

Focus : SmartFocus; one finger continuous focus

IR digital zoom : 2x, 4x, 8x

Detector type : 320 x 240 Focal Plane Array, Vanadium Oxide (VOx) Uncooled Microbolometer with 25 micron pitch

Spectral band : 8 µm to 14 µm

Digital image enhancement : Automatic full-time enhanced

Visual On camera operating modes : Full thermal, full visual light or merged thermal-visual images. Picture-in-picture

Visible light camera : 1280 x 1024 pixels, full color

Visible light digital zoom : 2x, 4x

Image Presentation

Digital display : 5 in large high-resolution digital display

LCD backlight : Sunlight readable color LCD

Video output : RS170 EIA/NTSC or CCIR/PAL composite video
