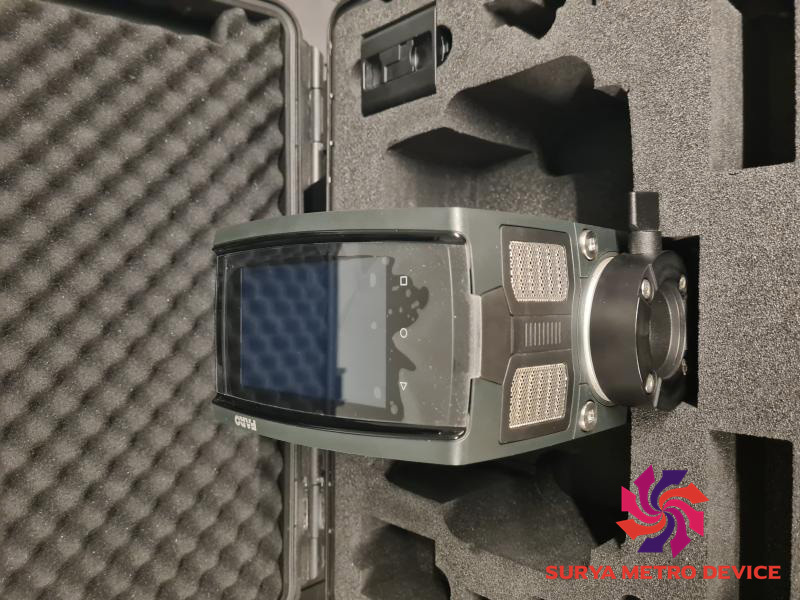

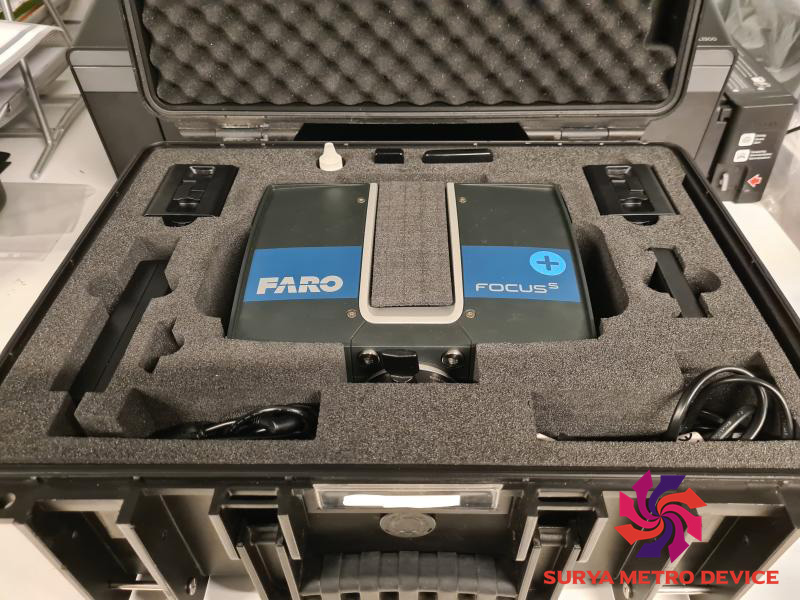

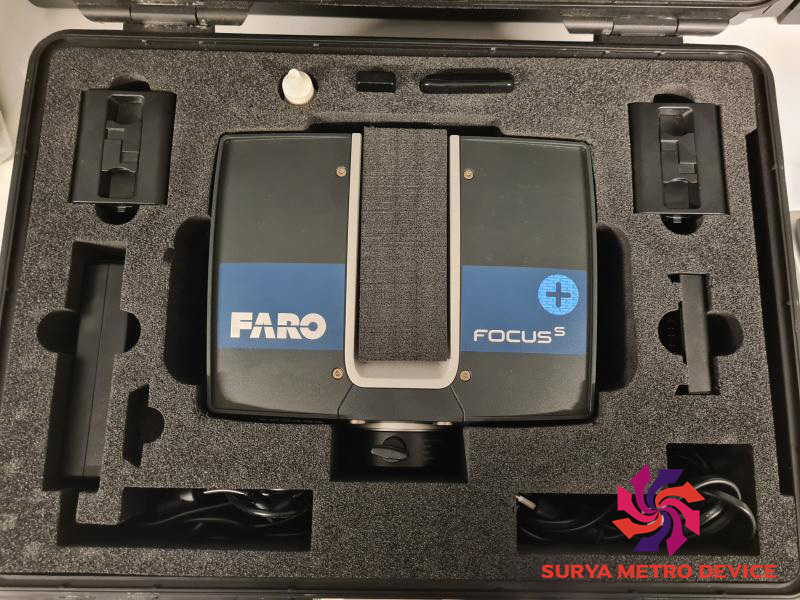

Faro Focus S150 Laser Scanner
Specifications Faro Focus S 150
GENERAL
-
Height [m] 23
-
Depth [m] 18.3
-
Width [m] 10.3
-
Total Weight [kg] 4.2
LASER RANGER
-
Range measurement principle pulse
-
Wavelength [nm] 1550
-
Laser safety classification 1
-
Min. Range [m] 0.6
-
Max. Range [m] 150
-
Beam diameter at exit [mm] 2.12
-
Beam divergence [mrad] 0.3
SCANNING CHARACTERISTICS
-
Max. vertical field of view [deg] 300
-
Max. horizontal field of view [deg] 360
-
Min. horizontal step size [deg] 0.009
-
Min. vertical step size [deg] 0.009
-
Beam deflection mechanism Rotating Mirror
OPERATION CHARACTERISTICS
-
Operating temperature: min. [°C] 5 – 40 normal | -20 – 55 extended | -10 – 60 storage
-
Operating temperature: max. [°C] 40
-
Humidity range [%] non-condensing
-
Internal Camera Y
-
Control panel built in Y
-
IP Rating 54
-
Dual Axis Compensation Y
POWER
-
Battery type 19 V external – 14.4 V internal
-
Scan time per battery [h] 4.5
PERIPHERALS
-
User interfaceVia touchscreen display and WLAN connection. Access by mobile devices with HTML5
-
SpecificationsData Storage: SD, SDHC™, SDXC™; 256GB card
-
Additional sensorsHeight Sensor, Compass, Integrated GPS and GLONASS
-
Registration/orientation methodsThe electronic compass gives the scan an orientation. A calibration feature is included.
SOFTWARE FUNCTIONALITY
-
Real time visualization during scanning Y
-
Geo-referencing Y
APPLICATION
-
Main usersAndroid/iOS
-
Main applicationsInspection, Settlement Control, Reverse Engineering, Scan to BIM in Architecture, Engineering, Construction, Public Safety and Forensics or Product Design
